Stop the Engine

1.
   PY4501-UN-13JAN05


   PY6082-UN-06AUG06

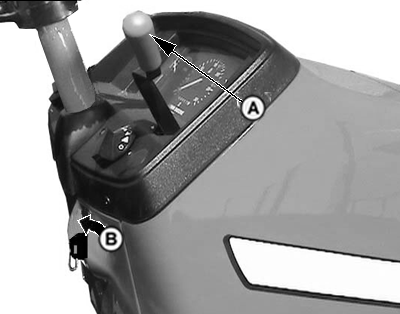

   A - Hand Throttle

   B - Key Switch OFF Position

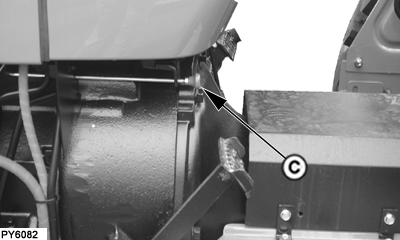

   C - Fuel Shut Off Knob

   Pull hand throttle (A) down to slow idle position. Allow engine to idle for one to two minutes.

---




2. Put range shift lever in neutral (N) and set brakes.

3. IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

   Turn key switch to the OFF position (B).

4. Pull manual fuel shut-off knob (C) (at lower left side of control support) rearward and hold until engine has completely stopped.

   CAUTION: Remove key from key switch to prevent operation by untrained personnel.
