Operate Transmission

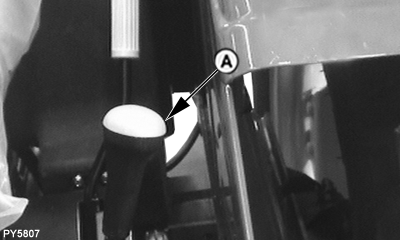

PY5807-UN-16JUL07

Range Shift Lever

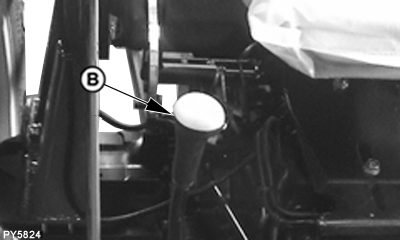

PY5824-UN-20JUN06

Speed Shift Lever

A - Range Shift Lever

B - Speed Shift Lever

Range shift lever (A) provides two forward speed ranges, (A and B) and one reverse range (R).

Speed shift lever (B) provides four travel speeds.

Using range and speed shift levers in different combinations, eight forward speeds and four reverse speeds can be obtained.

Range shift must be in neutral for the engine to be started.
