Install Rear Cast Iron Weights

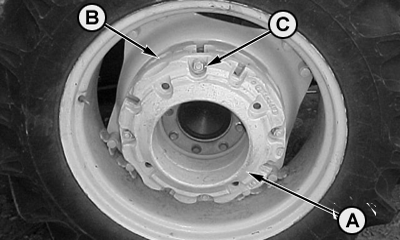

PY1635
PY1635-UN-17FEB06

A - Additional Weight

B - Weight

C - Weight Holes

CAUTION: Optional cast iron weight weighs 48 kg (106 lb). Handle with care! Use appropriate equipment or have the job done by your John Deere dealer.

  1. Attach first weight to wheel disks.

  2. To install additional weights (A), install bolts in previous weight (B). Rotate the added weight to align bolts with weight holes (C).

  3. Tighten attaching bolts securely. Tighten again after a few hours service. Check tightness regularly.
