Adjust Toe-In

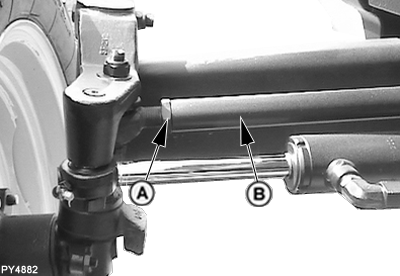

PY4882-UN-12JUN06

Powered Axle

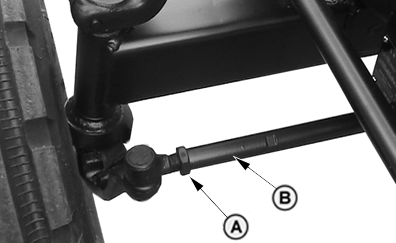

PY4148-UN-26AUG04

Non-Powered Axle

A - Tie Rod Lock Nut

B - Tie Rod Tube

1. Loosen lock nut (A) on tie rod.

2. Adjust tie rod equally by rotating tube (B) to lengthen or shorten tie rod. Adjust toe-in to 0—2 mm for DANA front axle.

3. Tighten bolt to specification. Do not overtighten as damage to the tube may occur.

   .

   Item	Measurement	Specification
   Tie Rod Jam Nut	Torque	90 N˙m (66 lb-ft)

Toe-In Value Chart
Make	Toe-In Value
DANA FRONT AXLE	0-2 mm
