Adjust Toe-In - Adjustable Front Axle––IF Equipped

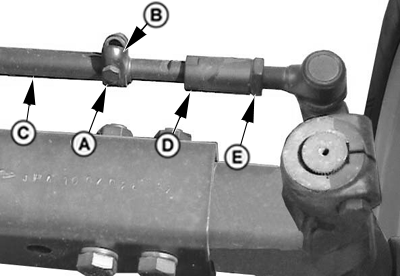

PY5025-UN-25MAY05

A - Locker Nut

B - Locker

C - Tie Rod

D - Extensioner

E - Lock Nut

1. Loosen locker nuts (A) on locker (B).

2. Loose ball joint lock nut (E).

3. Adjust tie rods on both sides of the tractor equally by the extensioner to lengthen or shorten. Adjust toe-in to 3 to 6 mm (1/8 to 1/4 in.)

4. Tighten nut on locker (A) to specification.

   Item	Measurement	Specification
   Locker Nut	Torque	40 N˙m

5. Tighten the ball joint lock nuts (E) to specification.

   Item	Measurement	Specification
   Extensioner Lock Nut	Torque	160 N˙m
