Inspect Element

PY1636
PY1636-UN-30SEP03

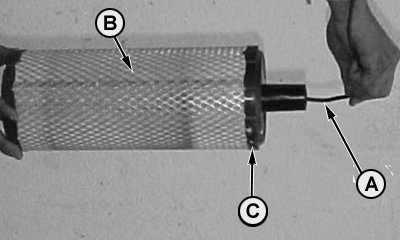

A - Light Source

B - Element

C - Rubber Sealing Surface

  1. Hold a bright light (A) inside element (B) and check carefully for holes. Discard any element which shows the slightest hole.

  2. Be sure outer screen is not dented. Vibration would quickly wear a hole in filter.

  3. Be sure rubber sealing surfaces (C) are in good condition on both ends. If damaged, replace element.

SA61034,0000310-19-20080318
