Connect Starter Wiring

PY4876-UN-12APR05

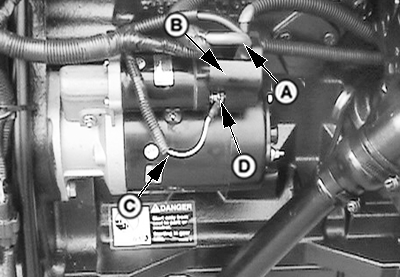

A - Large Battery Cable

B - Large Solenoid Post

C - Small White Wire

D - Solenoid Terminal

IMPORTANT: Disconnect battery negative (ground) cable before servicing any part of electrical system. Make all other connections before connecting ground cable.

Connect large battery cable (A) and alternator cable to large solenoid post (B). Connect the small white wire (C) to solenoid terminal (D).
