Clean Transmission-Hydraulic Pickup Screen

PY4974-UN-22APR05

PY4973-UN-22APR05

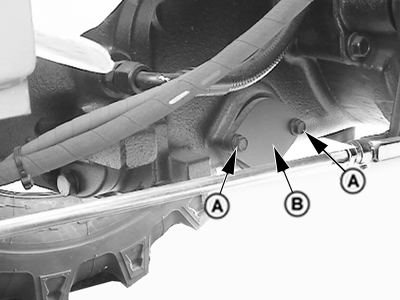

A - Cap Screws (2 used)

B - Screen Cover

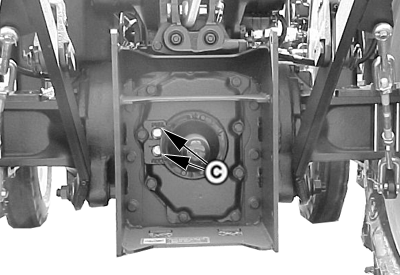

C - Sight Glass

1. Drain transmission-hydraulic oil. (See Change Transmission-Hydraulic Oil and Filter in this section.)

2. Remove two cap screws (A) and remove screen cover (B)

3. Remove screen and examine it for damage. Replace if necessary. Clean screen in solvent and blow dry with compressed air.

4. Carefully install screen so the front of screen is inserted in hole at front of differential case.

5. Fill system with transmission-hydraulic oil. (See Changing Transmission-Hydraulic Oil and Filter in this section.)

6. Check oil level at sight glass (C) after filling, and again after operating for five minutes.
