Change Oil in MFWD Axle (If Equipped)

PY12255-UN-01SEP11

Wheel Hub

PY12254-UN-01SEP11

Oil Fill Plug DANA

PY12252-UN-01SEP11

Oil Drain Plug DANA

A - Mfwd fill port plug

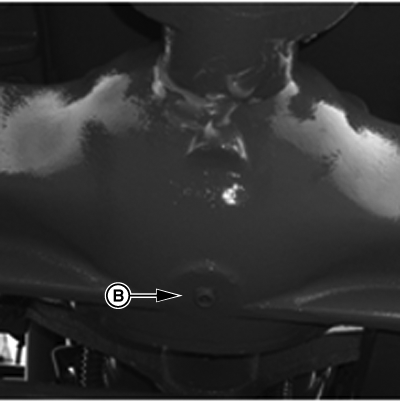

B - Wheel Hub Drain Port Plug

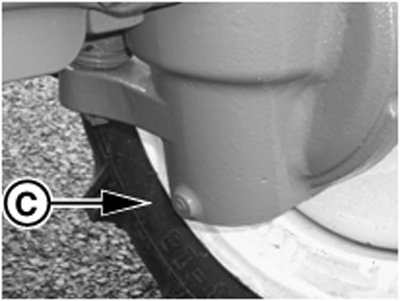

C - Differential Housing Drain Plug

1. Tractor should be positioned on level ground to assure correct oil levels when filling. NOTE: Each front wheel hub has a drain/fill plug (A)

2. Remove drain plugs (B and C).Drain oil.
3. Install drain plugs (B & C).
4. Fill differential housing at fill location (A) with John Deere HYGARD® Gear Lubricant. (See Fuels, Lubricants and Coolant section.) Fill oil to level mark on dipstick attached to filler cap.

Item	Measurement	Specification
MFWD Assembly Axle Oil - DANA—	Capacity	5.9 L (1.55 Gal)

IMPORTANT: Check oil level after 30 minutes. Oil flows very slowly through bearings and axle housings. Fill through hub fill port (A). Add oil as needed.

NOTE: HYGARD is a registered trademark of Deere & Company
