Replace Fuel Filter

1. IMPORTANT: Be sure characteristics of new filter match the original filter.

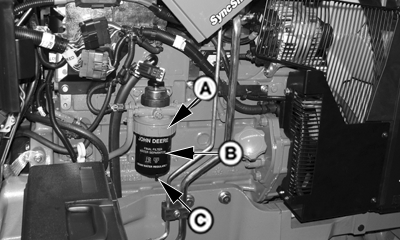

   PULV000616-UN-19MAR08

   A - Retaining Ring

   B - Fuel Filter

   C - Drain Plug

   PARK tractor on level ground and SHUT OFF engine. Remove key. Let engine to cool.

---




2. Raise hood.

3. Open drain plug (C) and drain fuel.

   NOTE: Place suitable sized collection container under fuel drain. Dispose of waste properly.

4. Lift up and rotate retaining ring (A) counterclockwise. Remove ring with fuel filter (B).

5. Install new filter assembly. Tighten retaining ring hand-tight.

6. Bleed the fuel system. (See Bleed Fuel System in Section 75.)

7. Start engine and keep running for some time.

8. SHUT OFF engine.

9. Inspect drain plug (C) and filter (B) for leaks.

10. Lower hood.
