Implement/Trailer Outlet

RXA0068234-UN-27JUN03

RW21249A-UN-29APR99

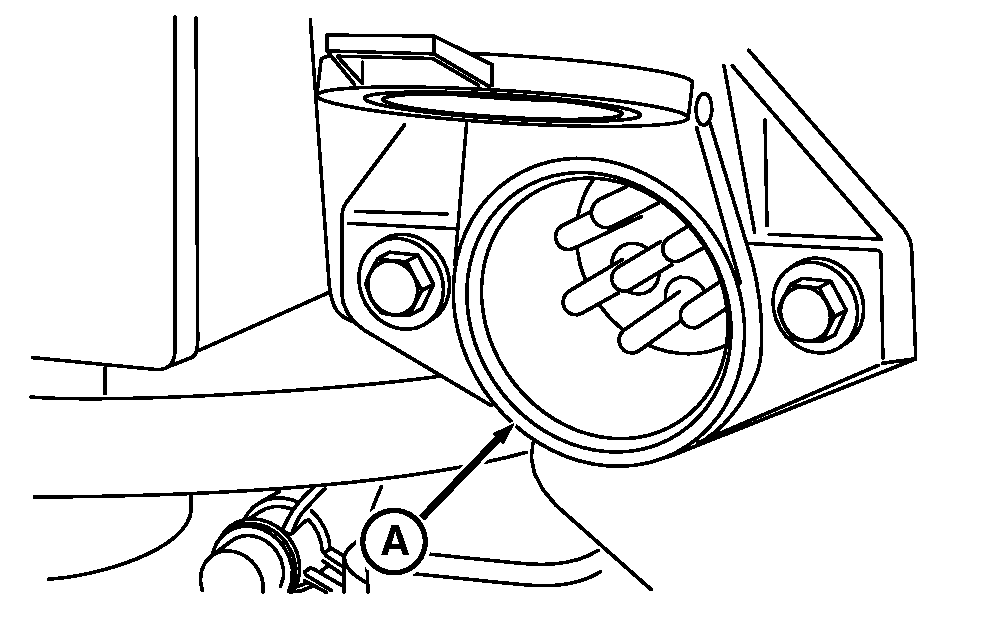

A - Implement/Trailer Outlet

Outlet (A) is used to connect lights, turn signals, and remote electrical equipment on trailers or implements. Always use auxiliary light on towed implement when tractor lights are obscured.

If implement harness is properly wired and connected to outlet, implement lighting operates in conjunction with tractor warning and signal lights.

NOTE: Matching plug is available through your John Deere dealer.

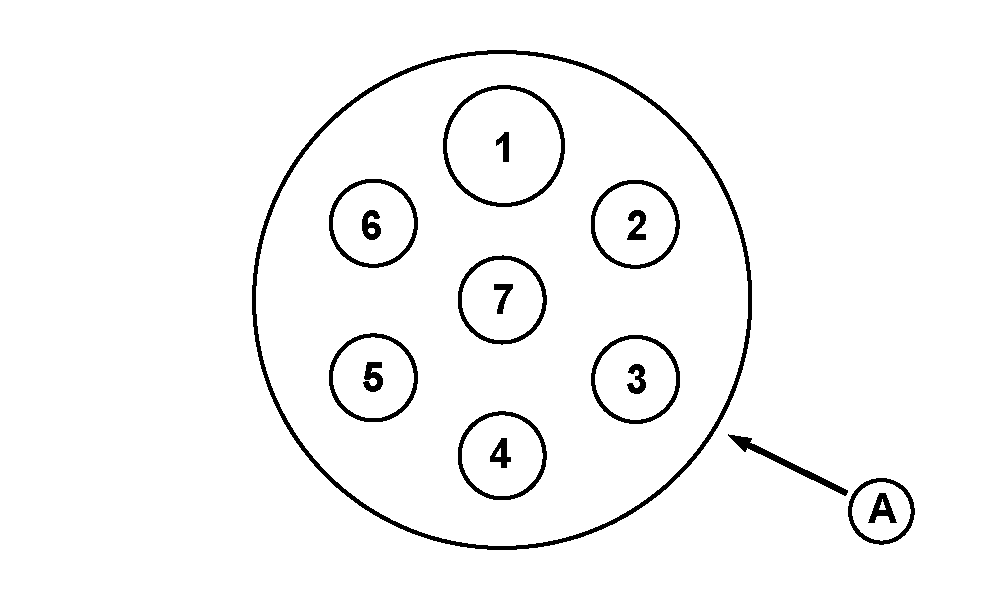

Terminal	Function
1	Ground
2	Work Light
3	Left Turn
4	Brakes
5	Right Turn
6	Tail Light
7	Auxiliary Power
