Transmission, Steering, Brake, Hydraulic, and Gear Case Oil
TS1651-UN-14MAR96

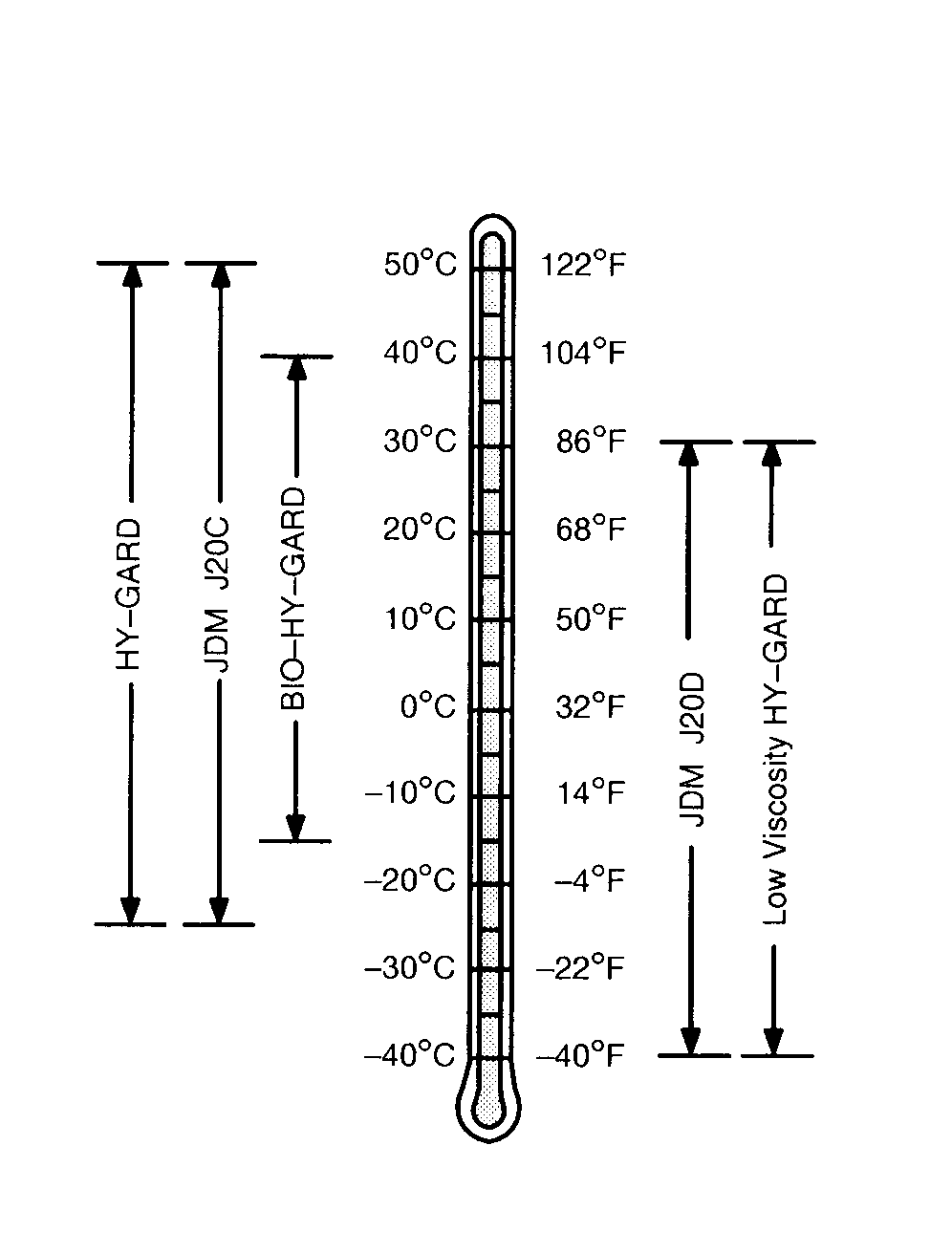

Use oil viscosity based on the expected air temperature range during the period between oil changes.
The following oils are preferred:
- John Deere Hy-Gard™
- John Deere Low Viscosity Hy-Gard™
Other oils may be used if they meet one of the following:
- John Deere Standard JDM J20C
- John Deere Standard JDM J20D
Use John Deere Bio Hy-Gard™ oil when a biodegradable fluid is required.1
|
Hy-Gard is a trademark of Deere & Company Bio Hy-Gard is a trademark of Deere & Company 1 Bio Hy-Gard meets or exceeds the minimum biodegradability of 80% within 21 days according to CEC-L-33-T-82 test method. Bio Hy-Gard should not be mixed with mineral oils, because this reduces the biodegradability and makes proper oil recycling impossible. |
DX,OIL1-19-20110414 |
