Gauges and Indicator Lights

LV14300-UN-17MAY11

LV14307-UN-17MAY11

1	Fuel Level Gauge	Indicates amount of fuel remaining in tank.
2	Left Turn Indicator	Flashes when turn signal switch is switched to left-hand side.
3	Tachometer	Indicates engine speed, revolutions per minute (RPM).
4	Right Turn Indicator	Flashes when turn signal switch is switched to right-hand side.
5	Engine Coolant Temperature Gauge	Indicates engine coolant temperature. Red area indicates overheat (coolant level too low, dirty radiator, or clogged screen). SHUT OFF engine IMMEDIATELY to prevent damage. If necessary, have John Deere dealer diagnose vehicle.
6	Service Alert Indicator	Illuminates when a malfunction occurs (review error message in Information Display). If necessary, have John Deere dealer diagnose vehicle.
7	Hydraulic Oil Temperature	Illuminates when hydraulic oil overheats (review error message in Information Display). If necessary, have John Deere dealer diagnose vehicle.
8	Electrohydraulic Hitch Indicator	Illuminates when hitch malfunction occurs (review error message in Information Display). If necessary, have John Deere dealer diagnose vehicle.
9	Neutral Indicator	Illuminates when transmission reverser (if equipped) in neutral position. Flashes when operator improperly shifted reverse. If necessary cycle reverser lever back to neutral. If flashing and Transmission Information indicator are illuminated at the same time, this indicates a malfunction (review error message in Information Display). If necessary, have John Deere dealer diagnose vehicle.
10	High Exhaust Temperature Indicator	Illuminates when the presence of temperatures inside the exhaust filter allow an active filter cleaning to occur.
11	Exhaust Filter Indicator	Illuminates when soot level in the filter are high and exhaust filter cleaning is needed.
12	Exhaust Filter Disabled Indicator	Illuminates when the exhaust filter cleaning switch had been disabled.
13	Engine Air Cleaner Restriction Indicator	Illuminates when air cleaner element clogged (clean or replace element). If necessary, have John Deere dealer diagnose vehicle.
14	Engine Information Indicator	Illuminates when engine malfunction occurs (check oil level and review error message in Information Display). If necessary, have John Deere dealer diagnose vehicle.
15	Transmission Information Indicator	Illuminates when transmission malfunction occurs (review error message in Information Display). If necessary, have John Deere dealer diagnose vehicle.
16	Information Display	Displays speedometer, hour meter, transmission speed selection (Hi, Lo, or R) (if equipped), PTO Speed, diagnostic trouble codes, and on-board diagnostics information.
17	Trailer 2 Indicator	Starts flashing when trailer turn-signal or hazard warning lights are switched on.
18	Charging System Indicator	Illuminates when alternator malfunction occurs. If necessary, have John Deere dealer diagnose vehicle.
19	MFWD Engaged Indicator	Illuminates when mechanical front-wheel drive is engaged.
20	PTO Engaged Indicator	Illuminates when rear PTO is engaged.
21	High Beam Indicator	Illuminates when the headlights are switched on high beam.
22	Differential Lock Indicator	Not Used.
23	Park Brake Indicator	Illuminates when park brake is engaged.
24	Vehicle Indicator	Starts flashing when vehicle turn-signal or hazard warning lights are switched on.
25	Trailer 1 Indicator	Starts flashing when trailer turn-signal or hazard warning lights are switched on.
26	STOP Indicator	Illuminates when a serious malfunction occurs. SHUT OFF engine IMMEDIATELY and determine cause (review error message in Information Display). If necessary, have John Deere dealer diagnose vehicle.

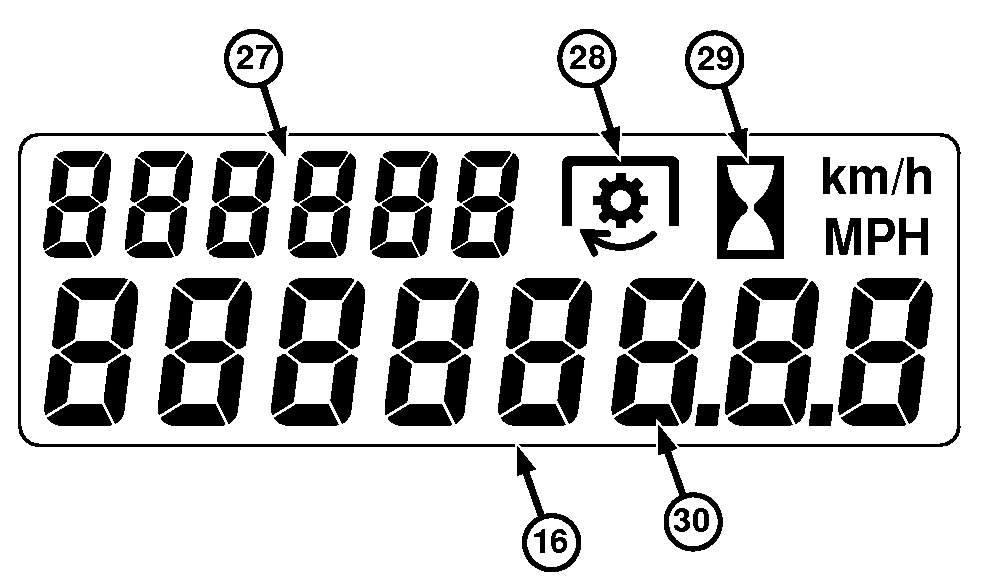

27	Vehicle Information Display	Shows Hi/ Lo (If equipped). When in diagnostic mode, display shows name of controller (i.e. ECU) that is experiencing fault.
28	PTO Icon	Illuminates when PTO speed is selected.
29	Hour Meter Icon	Illuminates when engine hours are being displayed at (27).
30	Vehicle Information Display	Shows vehicle wheel speed, engine hours, PTO speed, and diagnostic code information.
