Service Daily Before Start-Up

LV14401
LV14401-UN-31AUG11

LV14531
LV14531-UN-03AUG11

A - Engine Oil Filler Cap/Dipstick

B - Dust Unloading Valve

  1. IMPORTANT: Do not operate when oil level is below lower mark on dipstick.

    For any off level operation engine oil must be maintained at the FULL mark to avoid engine damage.

    Check engine oil level. Wipe dipstick (A) off and reinsert it fully. Remove and check oil level. Do not operate when oil level is below lower mark on dipstick. Add seasonal viscosity grade oil through filler hole.

  2. If operating in extremely wet or muddy conditions, lubricate the following with multipurpose grease:

    • Front axle pivot pin
    • Steering spindles and cylinder ends (adjustable front axle)
    • Rear axle bearings

  3. Lubricate hood latch with multipurpose grease. (If necessary, clean first with a pressure washer)

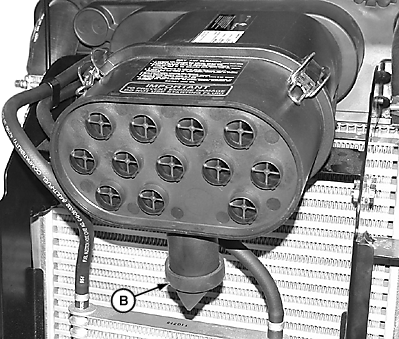

  4. Raise hood. Clean dust unloading valve (B) by squeezing flexible rubber lips together to release any dust buildup. If necessary, remove and clean out any heavy buildup. Replace if damaged. Lower hood.

GS25068,0001AAA-19-20150622
