Operating Lights

LV16327-UN-28NOV12

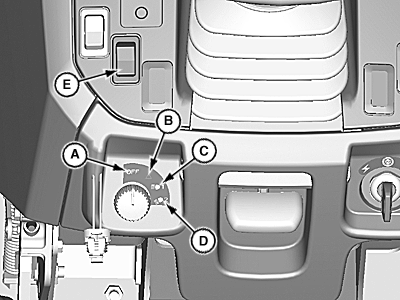

Light Switch-Open Operator Station shown; Cab similar

A - Off Position

B - Warning Light Position

C - Bright Headlight Position

D - Work Light Position

E - Headlight Dimmer Switch

Tractor light switch has three operating positions:

Warning position (B): Use when transporting on public roads.

Bright headlight position (C): Use when traveling on public roads at night or during daylight hours when visibility is limited.

CAUTION: Do not use work lights when transporting on public roads. Bright clear lights can blind or confuse drivers of other vehicles as they approach from the front or rear.

Work light position (D): Use to activate front and rear facing work lights, and high beam headlights.

Switch Position	Warning Lights Amber1	Taillights Red1	Work Light(s) Rear Facing	Work Light(s) Front Facing	Headlights
A–Off	Off	Off	Off	Off	Off
B–Warning	On Flashing	On Steady	Off	Off	Off
C–Bright Headlight	On Flashing	On Steady	Off	Off	On–High Beams2
D–Work Light	Off	Off	On	On	On–High Beams2

CAUTION: To alert drivers of other vehicles to your movements, use flashing warning lights whenever you travel on public roads.

IMPORTANT: Keep lighting in good working order. Repair or replace damaged lighting immediately.

Keep headlights properly adjusted. See Adjust Headlight in Maintenance—As Required/Per Condition section.

Brake Lights (If Equipped)

NOTE: Brake lights will only function if the brake light kit has been installed on the vehicle.

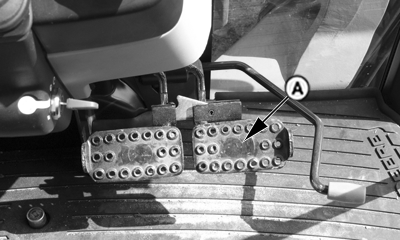

PULV000218-UN-06MAR08

A - Brake Pedal

Pedal Position	Brake Light
Released	Off
Applied	Steady

IMPORTANT: Keep lighting in good working order. Repair or replace damaged lighting immediately.
