Observing Drawbar Load Limitations

LV9614-UN-13AUG04

Fully Retracted

LV12603-UN-22APR05

Fully Extended

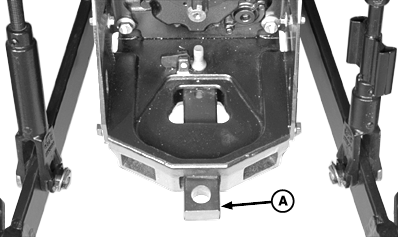

A - Drawbar—Fully Retracted

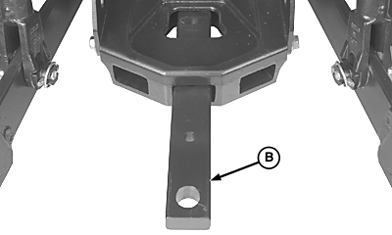

B - Drawbar—Fully Extended

IMPORTANT: Certain heavy equipment, such as a loaded single-axle trailer, can place excessive strain on drawbar. Strain is greatly increased by speed and rough terrain. Do not exceed maximum static vertical load on drawbar.

Drive slowly with heavy loads.

Item	Measurement	Specification
Drawbar Maximum Static Vertical Load
Fully Retracted Position	Static Vertical Load	1120 kg (2470 lb)
Fully Extended Position	Static Vertical Load	760 kg (1675 lb)

NOTE: Offset and heavy duty drawbars are available as an option. See your John Deere dealer for detailed information on optional drawbars.
