Selecting Front Tire Rolling Direction

RW510
RW510-UN-06APR89

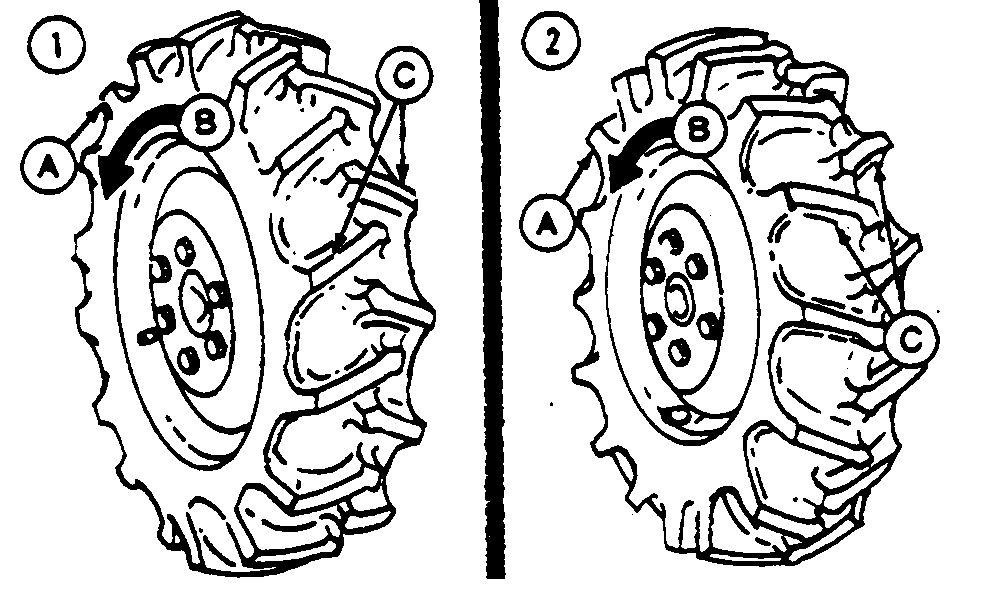

Left Tire (Viewed From Rear)

A - Front Tire (Viewed from Rear)

B - Rolling Direction of Tire

C - Tire Lugs

(1)—Under most conditions, front tires (A) should be mounted with the direction of tire lugs (C) the same as the tire rolling direction (B).

(2)—If tractor is mainly used for loader operations, lug direction may be reversed on the MFWD axle for improved tire wear.

JZ81662,000078A-19-20120308
