Tighten Wheel Bolts—MFWD Axle

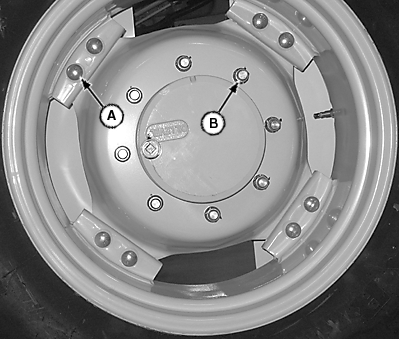

LV14278-UN-10MAY11

A - MFWD Wheel Rim-to-Disk Bolts

B - MFWD Wheel Disk-to-Hub Nuts

Tighten hardware (A and B) to specifications.

Item	Measurement	Specification
MFWD Wheel Rim-to-Disk Bolts (A)	Torque	245 N˙m (180 lb-ft)
MFWD Wheel Disk-to-Hub Nuts (B)	Torque	300 N˙m (220 lb-ft)
