Lubricate MFWD Axle Trunnion

PUPX000109-UN-13MAR09

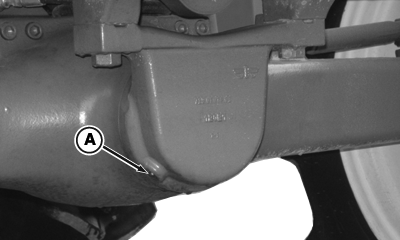

Front Side Trunnion of MFWD Axle

PULV000606-UN-19MAR08

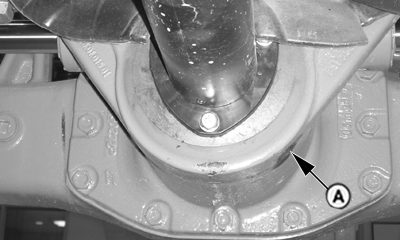

Back Side Trunnion of MFWD Axle

A - Trunnion grease points

Apply several shots of multipurpose grease (see Grease, in Section 75) to trunnion.

NOTE: Daily service is necessary when operating in extremely wet and muddy conditions.

Greasing too frequently can cause seal fatigue.
