Checking MFWD Axle Housing Oil Level

1.
   LV14247-UN-10MAY11

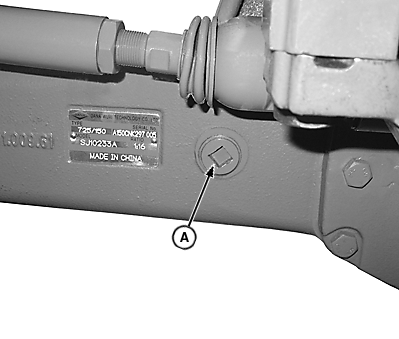

   A - Oil Level/Filler Plug

   PARK tractor on level ground and SHUT OFF engine. Remove key.

---




2. Remove oil level/filler plug (A). Oil level should be even with bottom of the filler plug hole.

3. If level is low, add oil through same hole. John Deere Hy-Gard™ oil is recommended. (See MFWD Axle Housing and Wheel Hub Oil, in Section 75.)

   NOTE: Approximate MFWD axle housing oil capacity is 5 L (1.32 gal).

4. Apply thread sealant to threads of plug.

5. Install plug and tighten to specifications.

   Item	Measurement	Specification
   Plug to Axle Housing	Torque	70 N·m (52 lb-ft)
