Locating Fuses

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuse Rating	Color
5 Amp	Orange
10 Amp	Red
15 Amp	Blue
20 Amp	Yellow
30 Amp	Green

IMPORTANT: DO NOT replace original fuse with higher rated fuse or machine damage may occur. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.

Cab

LV14275-UN-10MAY11

Left Console Cover

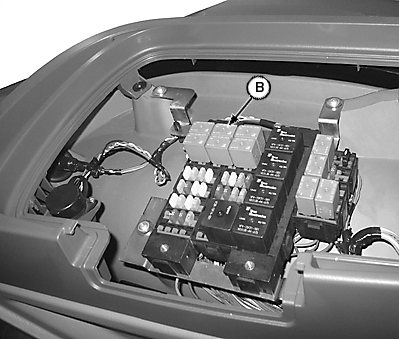

LV14276-UN-10MAY11

Load Center

A - Left Console Cover

B - Fuse and Relay Load Center

NOTE: A fuse and relay reference label is provided inside cover.

Open Operator Station

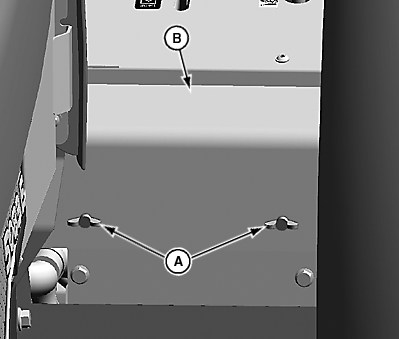

LV15753-UN-11MAY12

Load Center Cover

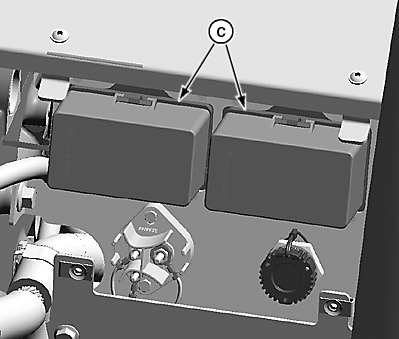

LV15754-UN-11MAY12

Fuse Block Covers

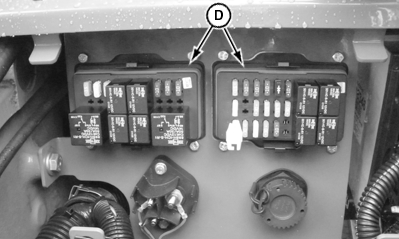

LV15755-UN-11MAY12

Fuse Blocks

A - Wing Nuts

B - Load Center Cover

C - Fuse Block Covers

D - Fuse Blocks

Remove load center cover, and fuse block covers (C) to gain access to fuse blocks (D).

NOTE: A fuse and relay reference label is provided inside cover.
