Replacing Work Light Bulb

LV5569-UN-07DEC00

LV5570-UN-07DEC00

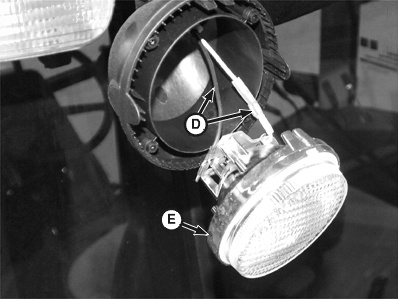

LV5571-UN-07DEC00

A - Screw Cover Slot

B - Retaining Ring Screw (4 used)

C - Retaining Ring

D - Wiring Connector (2 used)

E - Bulb

CAUTION: Halogen bulbs contain gas under pressure. Handling a bulb improperly could cause it to shatter into flying fragments. (See Handling Halogen Light Bulbs Safely in this section.)

NOTE: Bulb replacement procedures for front and rear work lights and optional auxiliary work lights are the same. Rear left side shown.

1. Remove screw cover by prying in screw cover slot (A) with a screwdriver.

2. Remove retaining ring screws (B), retaining ring (C) and bulb (E).

3. Disconnect wiring connectors (D).

4. Install new bulb and connect wiring connectors.

5. Install bulb, retaining ring and screws.

6. Install cover.
