Operating Rotating Beacon Light—If Equipped

LV9687
LV9687-UN-19AUG04

LV9688
LV9688-UN-19AUG04

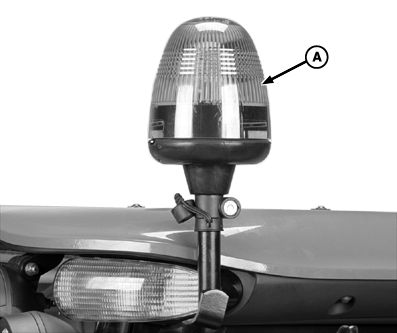

A - Light

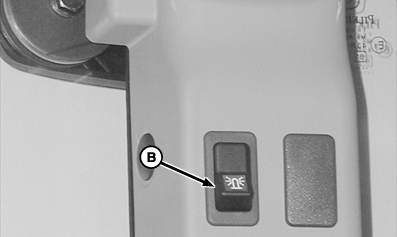

B - Switch

Depress switch (B) to activate light (A).

To remove light for storage or clearance:

  1. Loosen wing nut and lift light from tube.

  2. Install cap on tube end to protect light socket.

JZ81662,0000BB2-19-20120430
