Converting Category II Hitch to Category I

LV9640
LV9640-UN-11AUG04

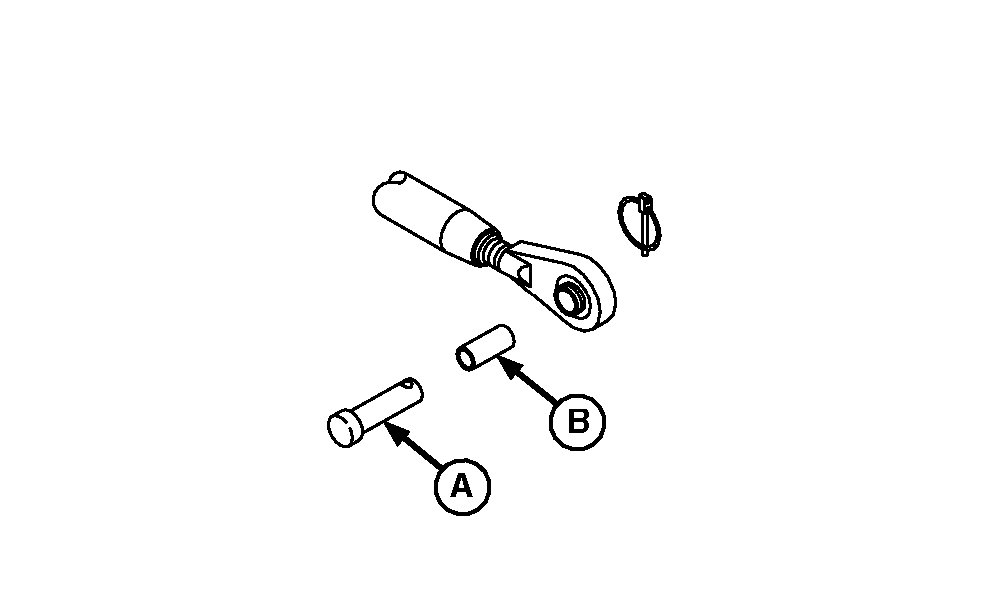

Center Link End Shown

A - Implement Pin

B - Center/Draft Link Bushing

Center link and draft link ends are sized for Category II implement attaching pins.

If Category I implements are to be used, the Category II hitch can easily be converted by inserting reducer bushings (B) in center link end and draft link ends. Smaller implement pins (A) are also needed when bushings are installed.

See your John Deere dealer for parts.
