Operating Loader Lights—If Equipped

LV9465
LV9465-UN-03SEP04

Loader Light (Left Side Shown)

LV15725
LV15725-UN-03MAY12

Loader Light Rocker Switch

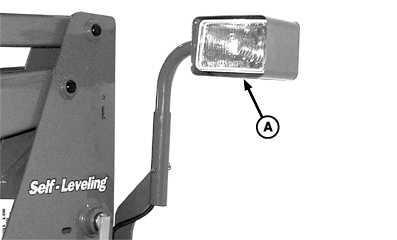

Loader lights (A) are dual beam headlights attached to loader mounting frames and used in place of standard front grille headlights which are obstructed by the loader.

Rotate light assemblies (A) to front-facing, operating position (shown).

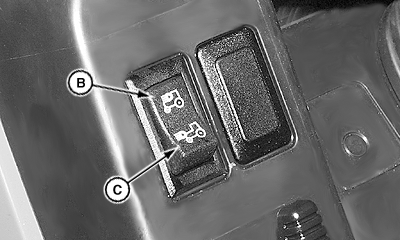

To activate loader lights, depress top of rocker switch (B).

Loader lights will now operate in place of front grille headlights and front work lights.

If loader is removed, depress bottom of rocker switch (C) to restore front grille headlights to normal operation. Turn loader light assemblies toward machine for storage.
