Replace Work Light Bulb—Open Operator's Station

1.
   LV8585-UN-14AUG03

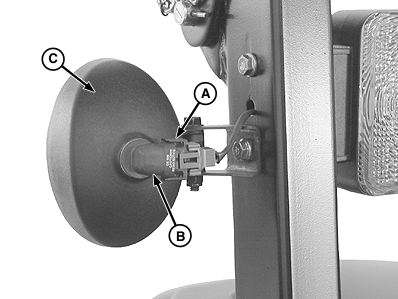

   Open Operator’s Station

   A - Wiring Harness Connector

   B - Bulb

   C - Housing

   Disconnect wiring harness connector (A).
2. Rotate bulb (B) counterclockwise and remove from housing (C).
3. Install new bulb into housing and rotate clockwise.
4. Connect wiring harness connector.
