Safety Signs—OOS

CAUTION:

LV15921-19-03OCT12

Safety Label

LV16105-UN-20SEP12

Left-Hand Fender

• Keep all shields in place during normal operation.
• Keep hands, feet and clothing away from power-driven parts.
• Disengage power-driven parts and shut off engine before unclogging or servicing machine.
• If service procedure requires engine to be running:

  - Only engage power-driven parts required by service procedure.

  - Ensure other people are clear of operator station and machine

• Do not leave machine running unattended.

WARNING

LV6526-19-14MAR01

Safety Label

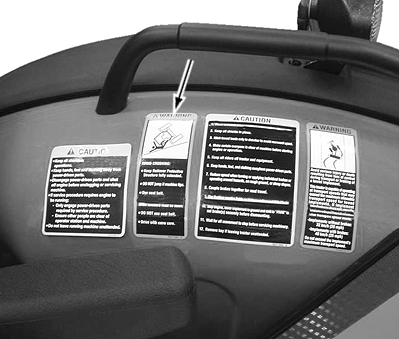

LV16106-UN-20SEP12

Left-Hand Fender

AVOID CRUSHING

• Keep rollover protective structure fully extended.
• Do not jump if machine flips.
• Use seat belt.

When structure must be down,

• DO NOT use seat belt.
• Drive with extra care.

CAUTION:

PULV000209-19-22FEB08

Safety Label

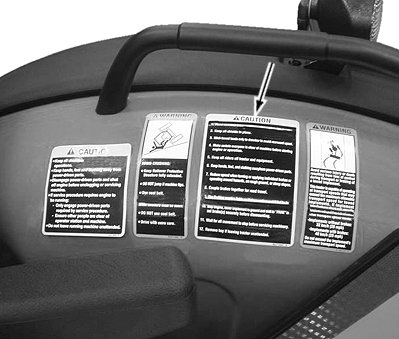

LV16107-UN-20SEP12

Left-Hand Fender

1. Read Operator's Manual before operating this tractor.
2. Keep all shields in place.
3. Hitch towed loads only to drawbar to avoid rearward upset.
4. Make certain everyone is clear of machine before starting engine or operation.
5. Keep all riders off tractor and equipment.
6. Keep hands, feet and clothing away from power-driven parts.
7. Reduce speed when turning or applying individual brakes or operating around hazards on rough ground or steep slopes.
8. Couple brake pedals together for road travel.
9. Use flashing warning lights on highway unless prohibited by law.
10. Stop engine, lower implement to ground and shift to “PARK” or set handbrake securely before dismounting.
11. Wait for all movement to stop before servicing machinery.
12. Remove key if leaving tractor unattended.

WARNING

RXA0068063-19-08JUL04

Safety Label

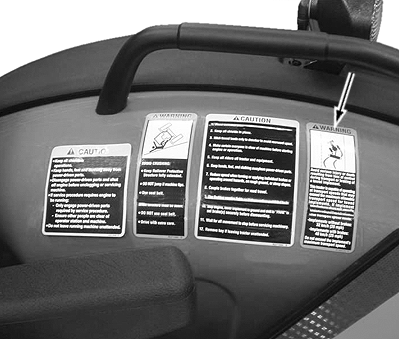

LV16108-UN-20SEP12

Left-Hand Fender

Avoid serious injury or death resulting from loss of control during transport or braking of a towed implement.

This tractor is capable of operating at transport speeds that may exceed the maximum allowable transport speed for towed implements. If implement manufacturer does not specify maximum transport speed, observe these transport speed limits:

—Implements without brakes: 32 km/h (20 mph)

—Implements with brakes: 40 km/h (25 mph)

Do not exceed the implement’s maximum transport speed.

Front End Loader—If Equipped

WARNING

RXA0068062-19-29JUN05

Safety Label

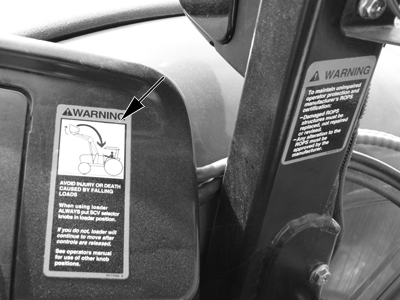

PULV000211-UN-06MAR08

OOS Right-Hand Console

AVOID INJURY OR DEATH CAUSED BY FALLING LOADS

When using loader ALWAYS put SCV selector knobs in loader position.

If you do not, loader will continue to move after controls are released.

See operators manual for use of other knob positions.
