Front Console Switches and Controls

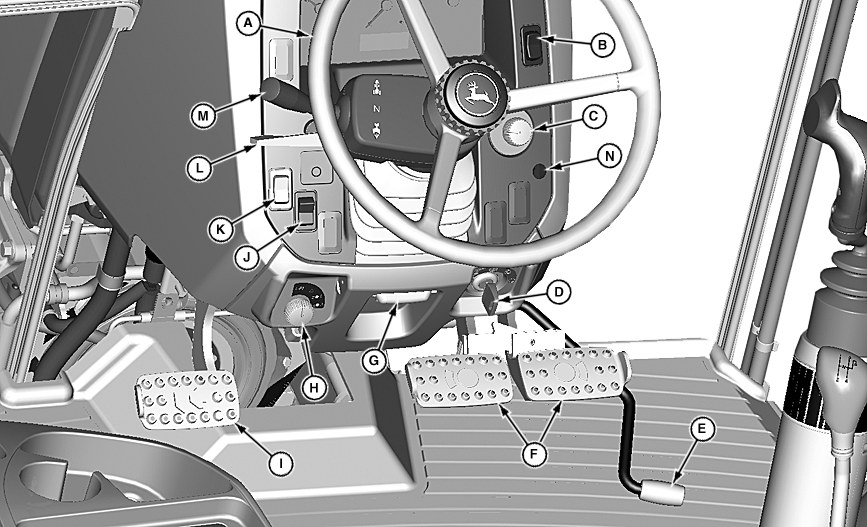

Cab

LV16314-UN-20DEC12

A - Steering Wheel

B - Exhaust Filter Control Switch

C - Windshield Wiper/Washer Control

D - Ignition Switch

E - Foot Throttle

F - Brake Pedals

G - Steering Wheel Tilt Lever

H - Light Switch

I - Clutch Pedal

J - Work Light Switch

K - Roll Mode Switch

L - Turn Signal Lever

M - EH Directional Reverser Lever

N - Horn Button (if equipped)

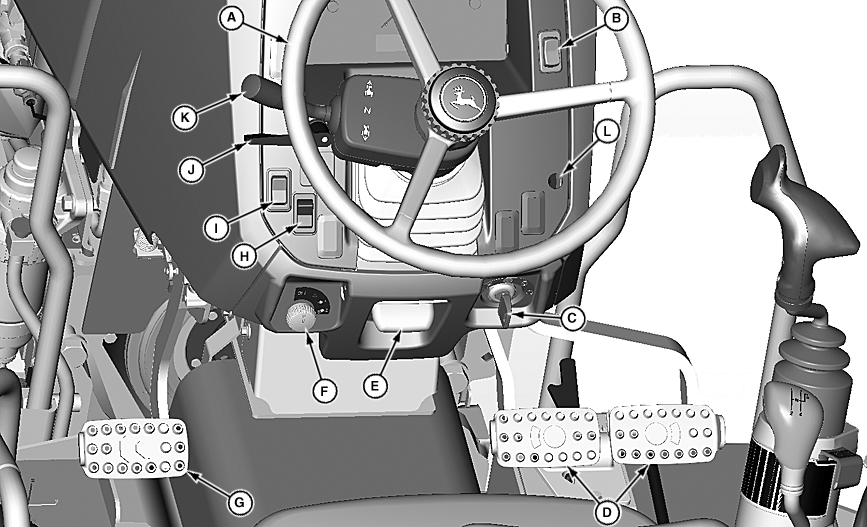

Open Operator Station (OOS)

LV16315-UN-20DEC12

A - Steering Wheel

B - Exhaust Filter Control Switch

C - Ignition Switch

D - Brake Pedals

E - Steering Wheel Tilt Lever

F - Light Switch

G - Clutch Pedal

H - Work Light Switch

I - Roll Mode Switch

J - Turn Signal Lever

K - EH Directional Reverser Lever

L - Horn Button (if equipped)
