Tractor Controls—Cab

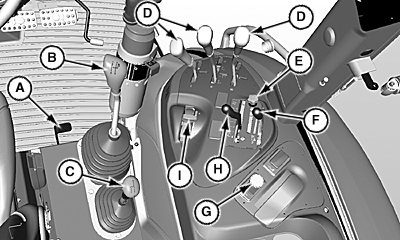

Right-Hand Console

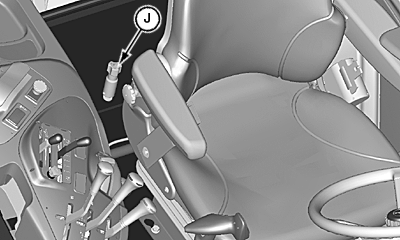

NOTE: The rockshaft rate-of-drop knob (J) is located behind driver’s seat on lower right-hand side.

LV16319-UN-21NOV12

LV16320-UN-21NOV12

LV16321-UN-21NOV12

A - Differential Lock Pedal

B - Gear Shift Lever

C - Range Shift Lever

D - SCV Control Levers

E - Position Control Stop Knob

F - Rockshaft Draft Control Lever

G - EH PTO Control

H - Rockshaft Position Control Lever

I - Hand Throttle

J - Rockshaft Rate-of-Drop Knob

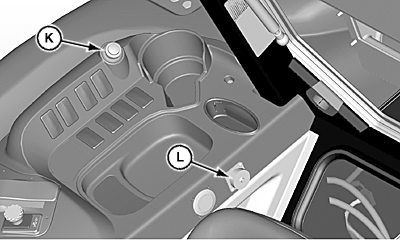

K - 12-Volt Accessory Outlet

L - Convenience Outlet

Left Side Controls

LV16548-UN-25JAN13

LV15783-UN-18MAY12

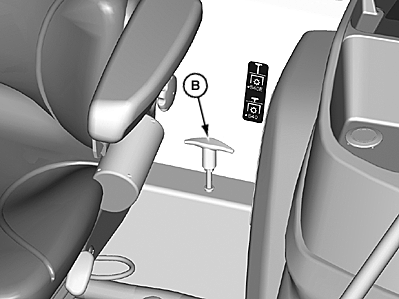

540/540E PTO Shift Lever

A - Mechanical Front Wheel Drive (MFWD) Engagement Lever

B - 540/540E PTO Shift Lever
