Tractor Controls—OOS

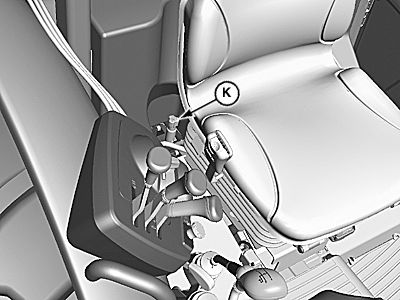

NOTE: The rockshaft rate-of-drop knob (K) is located behind driver’s seat on lower right-hand side.

LV16322-UN-21NOV12

LV16323-UN-21NOV12

LV16324-UN-28NOV12

LV16325-UN-28NOV12

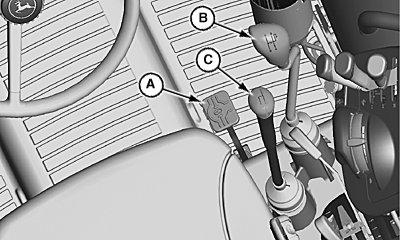

A - Differential Lock Pedal

B - Gear Shift Lever

C - Range Shift Lever

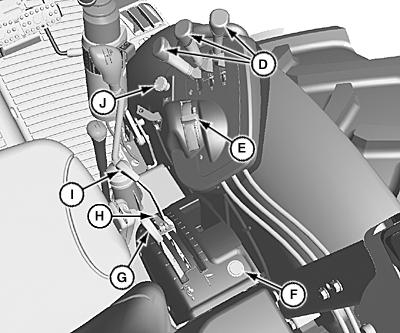

D - SCV Control Levers

E - Hand Throttle

F - 12-Volt Accessory Outlet

G - Rockshaft Draft Control Lever

H - Position Control Stop Lever

I - Rockshaft Position Control Lever

J - EH PTO Knob

K - Rockshaft Rate-of-Drop Knob

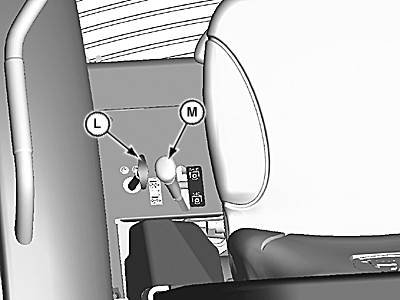

L - Mechanical Front Wheel Drive (MFWD) Lever

M - 540/540E PTO Shift Lever
