Adjusting Operator Seat

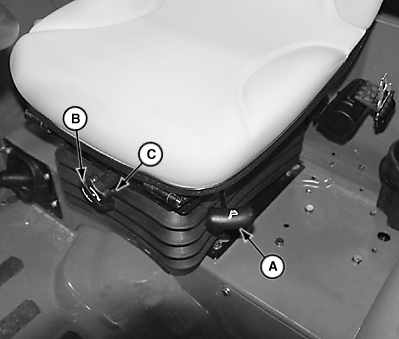

LV14504
LV14504-UN-05AUG11

Mechanical OOS Seat

A - Forward/Backward Adjustment Lever

B - Handle

C - Weight Adjustment Knob

CAUTION: To avoid accidents, adjust seat before driving.

IMPORTANT: While adjusting seat, make sure that all controls can be easily accessed.

Adjust to suit operator. Two seat adjustments are available:

Forward/Backward Adjustment

  1. Lift forward/backward adjustment lever (A).
  2. Slide seat to desired position.
  3. Release forward/backward lever (A) to lock seat in position.

Weight Adjustment

  1. Flip out handle (B) on weight adjustment knob (C).
  2. Turn handle (B) clockwise or counterclockwise to reach desired suspension travel for operator weight. NOTE: Suspension should not bottom out when properly adjusted.
  3. Return handle (B) to closed position.

JZ81662,0000F2D-19-20121116
