Adjusting Steering Wheel Tilt and Height

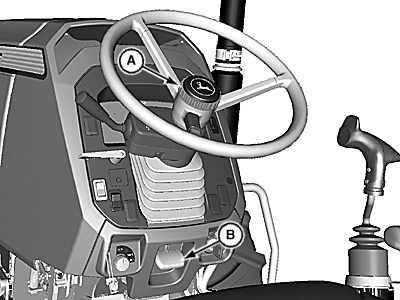

LV16328-UN-28NOV12

A - Steering Wheel Telescope Release Ring

B - Steering Wheel Tilt Lever

Loosen steering wheel telescope release ring (A) and adjust steering wheel to desired height. Tighten ring to lock into position.

Lift steering wheel tilt lever (B) and move steering column to desired angle. Release lever to lock into position.
