Adjusting Steering Wheel Tilt and Height

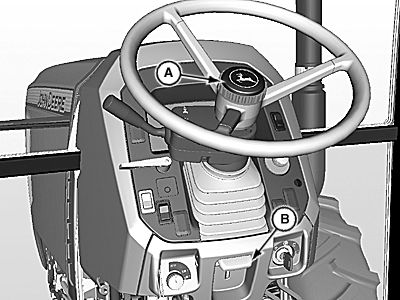

LV16333-UN-28NOV12

A - Steering Wheel Telescope Release Ring

B - Steering Wheel Tilt Lever

Loosen steering wheel telescope release ring (A) and adjust steering wheel to desired height. Tighten ring to lock into position.

Lift lever (B) and move steering column to desired angle. Release lever to lock into position.
