Accessory Electrical Outlet

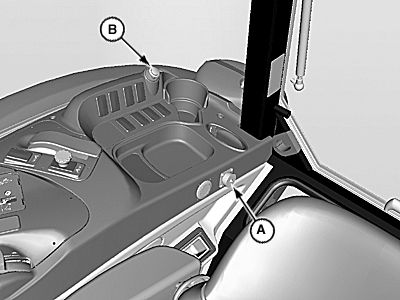

LV16336-UN-28NOV12

A - 12-Volt Electrical Convenience Outlet

B - 12-Volt Accessory Power Outlet

Power outlet (B) is an additional accessory 12-volt electrical outlet for operators use.

NOTE: Convenience outlet (A) is protected by two 30-amp fuses.

Accessory outlet (B) is protected by one 30-amp fuse.

NOTE: For fuse locations, see Maintenance—As Required/Per Condition section of this manual.
