Operating Ignition Switch

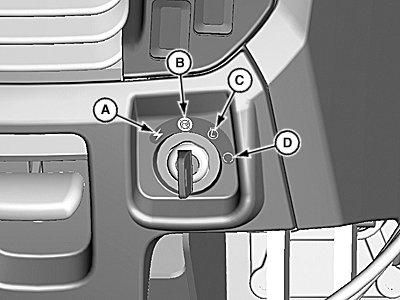

LV16326-UN-28NOV12

Cab shown; OOS Similar

A - Accessory Position

B - Stop Position

C - Run Position

D - Start Position

Accessory Position (A): Turn key to ACCESSORY position to power electrical functions.

Stop Position (B): Turn key to STOP position to turn off electrical accessories and to shut down engine.

Run Position (C): Turn key to RUN position. Check to ensure that indicator bulbs light, instrument indicator dials momentarily move, and that there is an audible beep before advancing to START position. Also use RUN position to activate cold weather starting devices. If temperature is below 5 °C (41 °F), refer to Cold Weather Starting procedure in this section.

Start Position (D): Turn key to START position. Release key as soon as engine starts. Key returns to RUN position.
