Using Engine Coolant Heater—If Equipped

CAUTION:

TS210
TS210-UN-23AUG88

LV16350
LV16350-UN-29NOV12

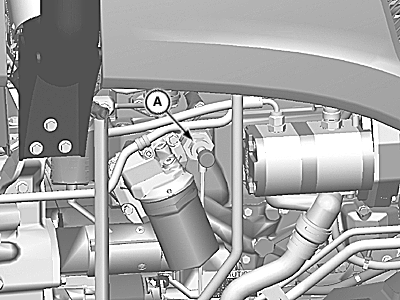

Engine Coolant Heater

A - Coolant Heater

To avoid shock or hazardous operation, always use a three-wire heavy-duty electrical cord (minimum gauge 10 AWG and no longer than 7.6 m [25 ft]) equipped with three connectors. If a two-to-three contact adapter is used at the wall receptacle, connect green wire to a good ground.

Immerse element in coolant before connecting heater to power source. NEVER energize heater in air.

Located on right-hand side of the engine, the 110-volt coolant heater (A) warms the engine coolant, reduces oil drag, eases starting, and shortens warm-up time.

Connect heater plug to a ground fault protected 110-volt electrical outlet.

JZ81662,0000F3F-19-20121218
