Changing Engine Speeds

LV16348-UN-28NOV12

Hand Throttle (Cab shown; OOS similar)

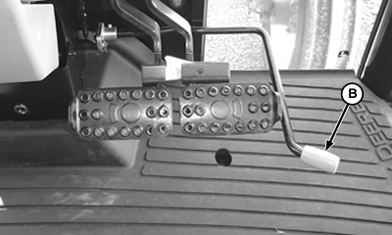

LV12798-UN-04OCT06

Foot Throttle (Cab shown; OOS similar)

A - Hand Throttle

B - Foot Throttle

Push hand throttle (A) forward to increase speed.

Depress foot throttle (B) to temporarily increase engine speed above hand throttle setting.
