Operating Mechanical Front Wheel Drive

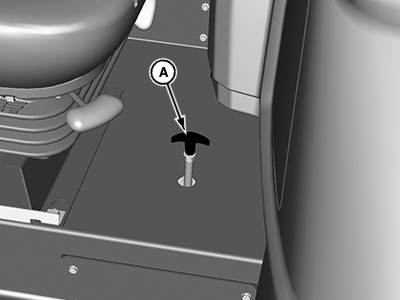

LV16548-UN-25JAN13

Cab

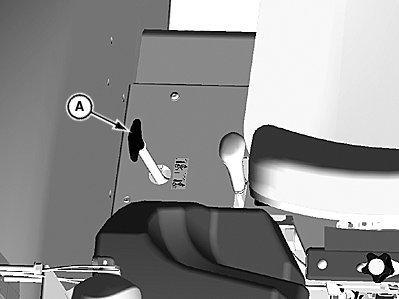

LV15740-UN-08MAY12

OOS

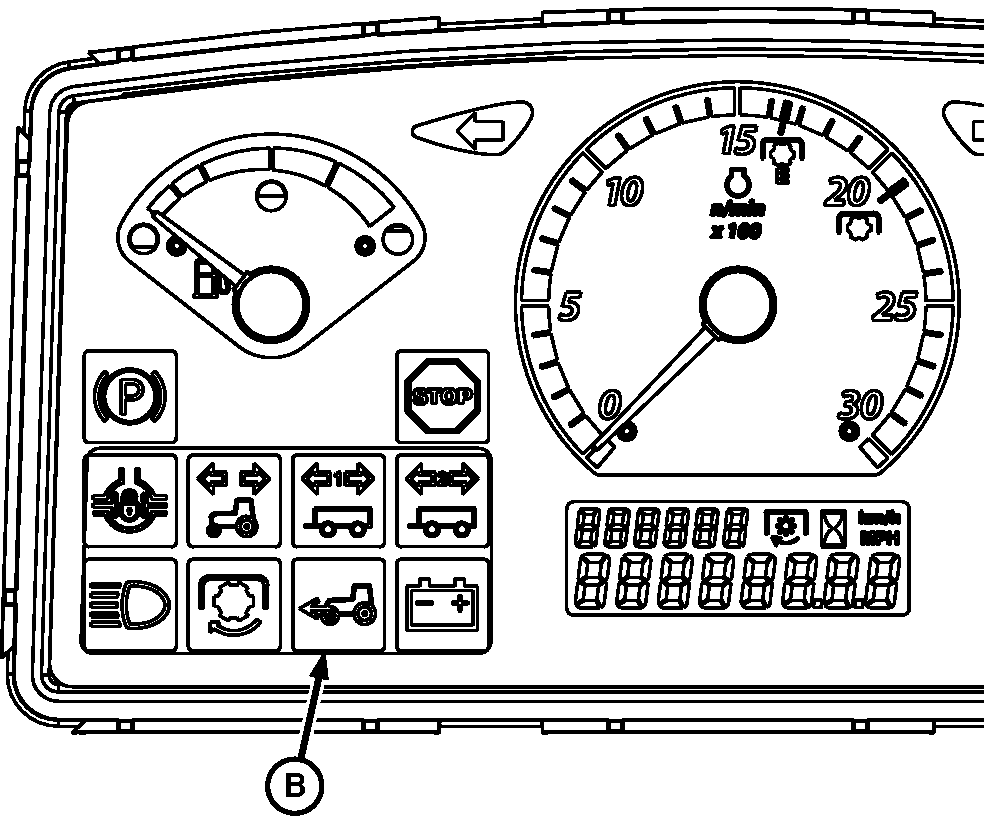

LV14397-UN-02JUN11

A - MFWD Engagement Lever

B - MFWD Indicator

Use mechanical front wheel drive (MFWD) as required for better traction.

CAUTION: Mechanical front wheel drive greatly increases traction. When used, extra caution is needed on slopes. Compared to 2-wheel drive, a mechanical front wheel drive tractor maintains traction on steeper slopes, increasing the possibility of a tip-over.

When driving on icy, wet, or graveled surfaces, reduce speed and be sure that tractor is properly ballasted to avoid skidding and loss of steering control. For best control, engage mechanical front wheel drive.

IMPORTANT: To extend tire life, engage mechanical front wheel drive only when needed. DO NOT engage when driving on hard surfaces.

DO NOT install tire chains on tractor front wheels. Chains can strike and damage tractor.

To prevent transmission damage, DO NOT engage or disengage mechanical front wheel drive on the go.

Depress clutch pedal and stop tractor before engaging or disengaging MFWD. Pull MFWD engagement lever (A) up to engage, and push lever down to disengage.

Indicator light (B) illuminates when MFWD is engaged.
