Attaching Implements to 3-Point Hitch

LV12577-UN-21APR05

Full In

LV12578-UN-21APR05

Mid-Point

LV12579-UN-21APR05

Full Out

A - Button

B - Draft Link End

C - Draft Arm

1. Be sure drawbar will not interfere. If necessary, move drawbar to fully retracted position or remove it. Check for any other potential interference.

2. CAUTION: To prevent unexpected movement of rockshaft, place draft sensing control in OFF position before attaching implement to hitch.

   Position tractor in line with hitch points. Back tractor up close to implement. Place transmission in PARK and stop engine.

3. Move button (A) toward center of tractor and pull out draft link end (B). Slip draft link end over implement hitch pin. Retain with quick-lock pin. Repeat on other side.

4. Raise or lower draft arms (C) to align ends (B) with arms, then slowly back up tractor to lock ends in place.

5.

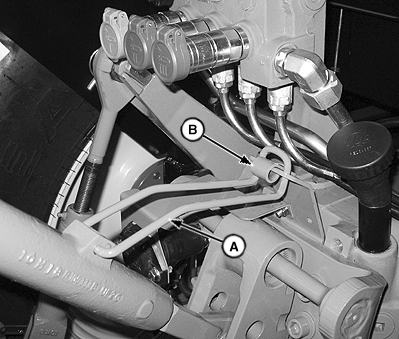

   LV14200-UN-29APR11

   Lift locking clip (A), and rotate tab (B) to rear to release center link from transport hook.

---




6. Attach center link to implement top mast.

7. Adjust center link and lift links as necessary. See Leveling the Hitch in this section.

8. CAUTION: To avoid bodily injury or machine damage whenever an implement, implement quick coupler, or other attachment is connected to the tractor 3-point hitch, check full range of operation for interference, binding or PTO separation.

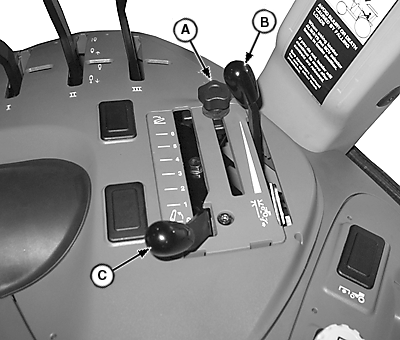

   LV14194-UN-27APR11

   Cab

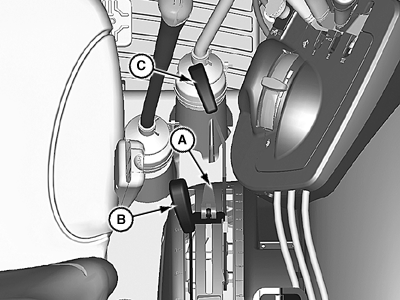

   LV16352-UN-29NOV12

   OOS

   A - Position Control Stop Knob

   B - Rockshaft Draft Control Lever

   C - Rockshaft Position Control Lever

   Start engine. Using rockshaft position control lever (C), slowly raise and lower implement and check for interference.

---
