Operating SCV Control Lever

CAUTION: Overheated hydraulic oil can cause personal injury and component malfunctions. To prevent hydraulic oil from overheating, DO NOT hold SCV control lever in operating position for an extended period of time.

LV14205-UN-27APR11

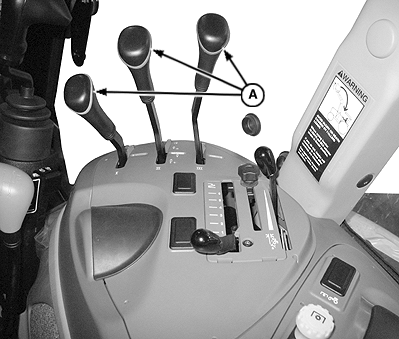

SCV Levers (Cab)

LV16359-UN-29NOV12

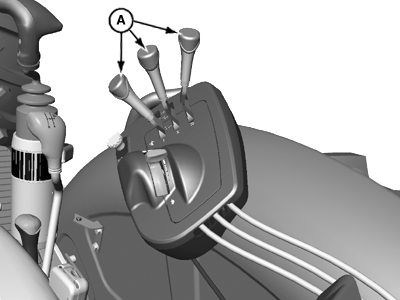

SCV Levers (OOS)

A - SCV Lever

Extend and Retract Cylinders

With hoses properly connected to couplers, pull lever back against spring pressure to extend remote cylinder. Spring pressure returns lever to neutral when released. With lever in neutral, remote cylinder is hydraulically locked in position. Push lever forward against spring pressure to retract cylinder.

Float Position

Push lever forward, through retract, into detent to operate “float” feature.

“Float” operation allows cylinder to extend and retract freely, such as when an implement follows ground contour.

Manually return lever to neutral when “float” is no longer required.
