Operating Tractor PTO

LV16348-UN-28NOV12

Hand Throttle Lever

LV14399-UN-02JUN11

A - Hand Throttle Lever

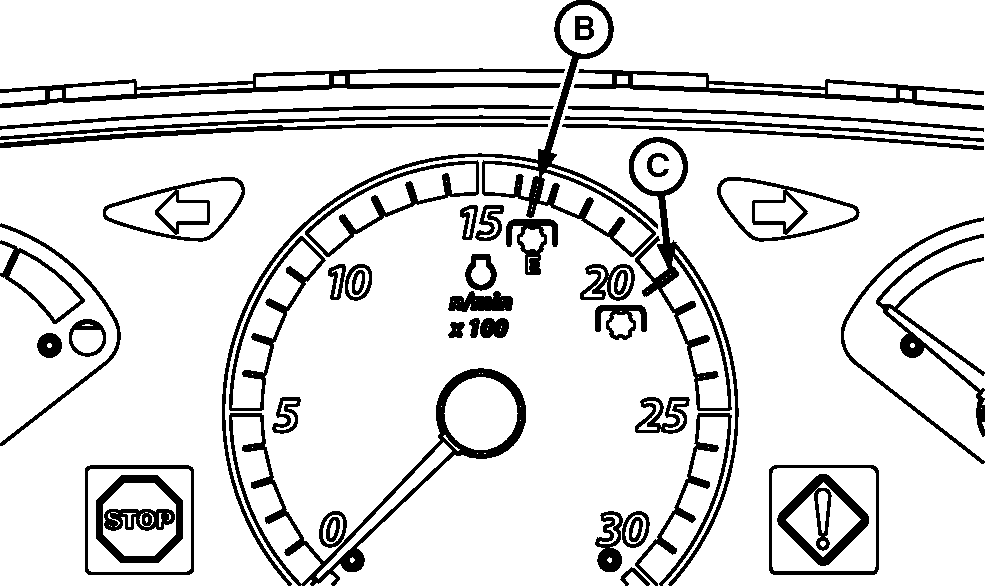

B - 540E Operation Speed

C - 540 Operation Speed

NOTE: Engine will not start if PTO lever is engaged.

1. Depress clutch pedal, start engine and push hand throttle lever (A) forward until tachometer indicates PTO rated speed:

   PTO Rated Speed
   PTO	Engine RPM Speed
   540E	1700
   540	2400 (full power)

   NOTE: When in 540E position, engine speed is mechanically limited to a maximum of 1700 rpm. 540E operation will not engage if engine speed is above 1700 rpm.

2. NOTE: PTO is engaged or disengaged without depressing clutch pedal.


   LV14213-UN-02MAY11

   PTO Control Switch (Cab)


   LV16346-UN-28NOV12

   PTO Control Switch (OOS)


   LV16363-UN-29NOV12

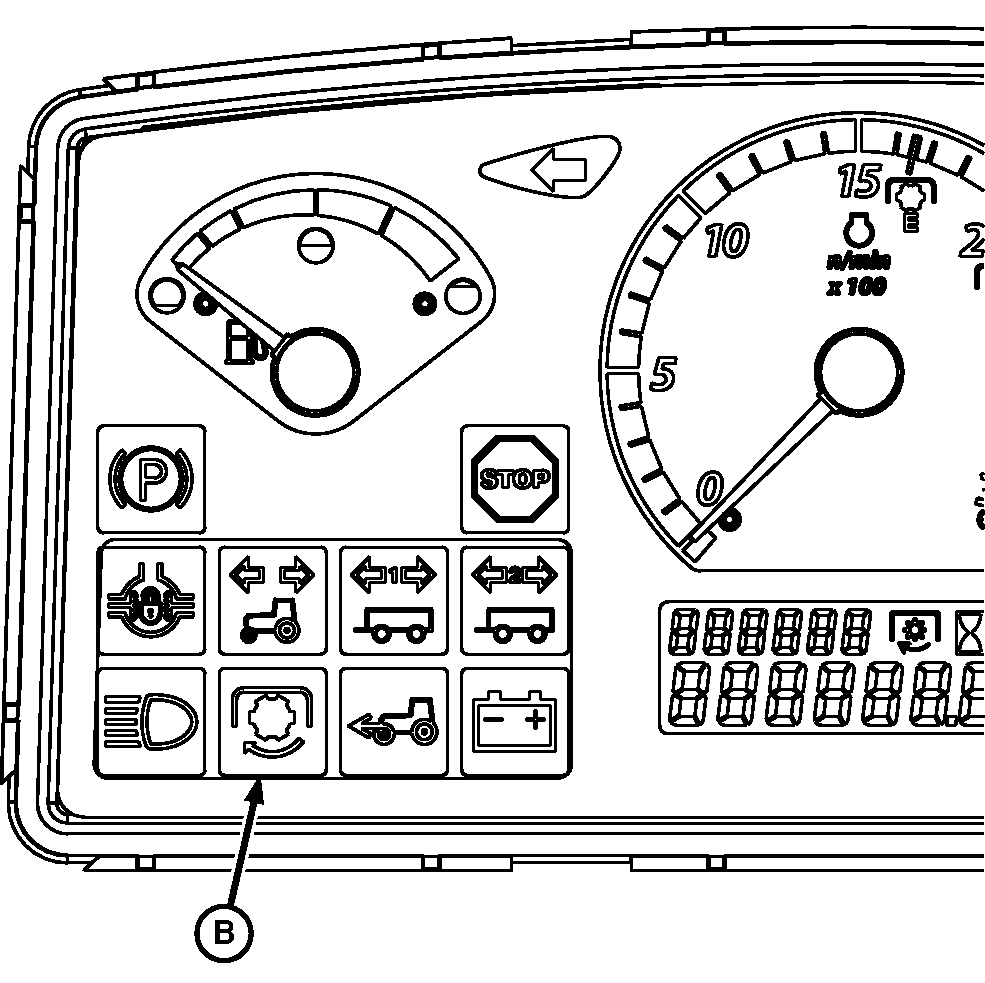

   Indicator

   A - PTO Control Switch

   B - PTO Indicator

   Lift PTO control switch (A) up to engage.

   PTO indicator (B) will light when PTO is engaged.

   IMPORTANT: A warning alarm will sound if operator leaves seat with PTO engaged.

   NOTE: If engine is stopped while PTO is engaged, restart engine, depress and lift PTO control switch to reset and engage PTO.

---




3. CAUTION:


   LV14213-UN-02MAY11

   PTO Control Switch (Cab)


   LV16346-UN-28NOV12

   PTO Control Switch (OOS)

   Avoid personal injury. Stop engine and allow PTO driveline to stop before adjusting, connecting or cleaning PTO driven equipment.

   To avoid entanglement with rotating shaft, always disengage PTO when not in use.

   Push PTO control switch (A) down to disengage.

   PTO brake automatically engages when PTO is disengaged.

---
