Tread Settings—Multi-Position Rear Wheels

LV8610-UN-28AUG03

Wheel tread on rear axle with multi-position wheels can be adjusted by repositioning or exchanging the rims or by reversing the wheel disks.

Wheel tread can also be adjusted by exchanging the complete wheel to the opposite side of the tractor (this maneuver permits the change from disk-dished-in to disk-dished-out operations without disassembling the wheel). When changing rear wheels from one side to the other, the arrow on side wall of tire points in the direction of forward rotation.

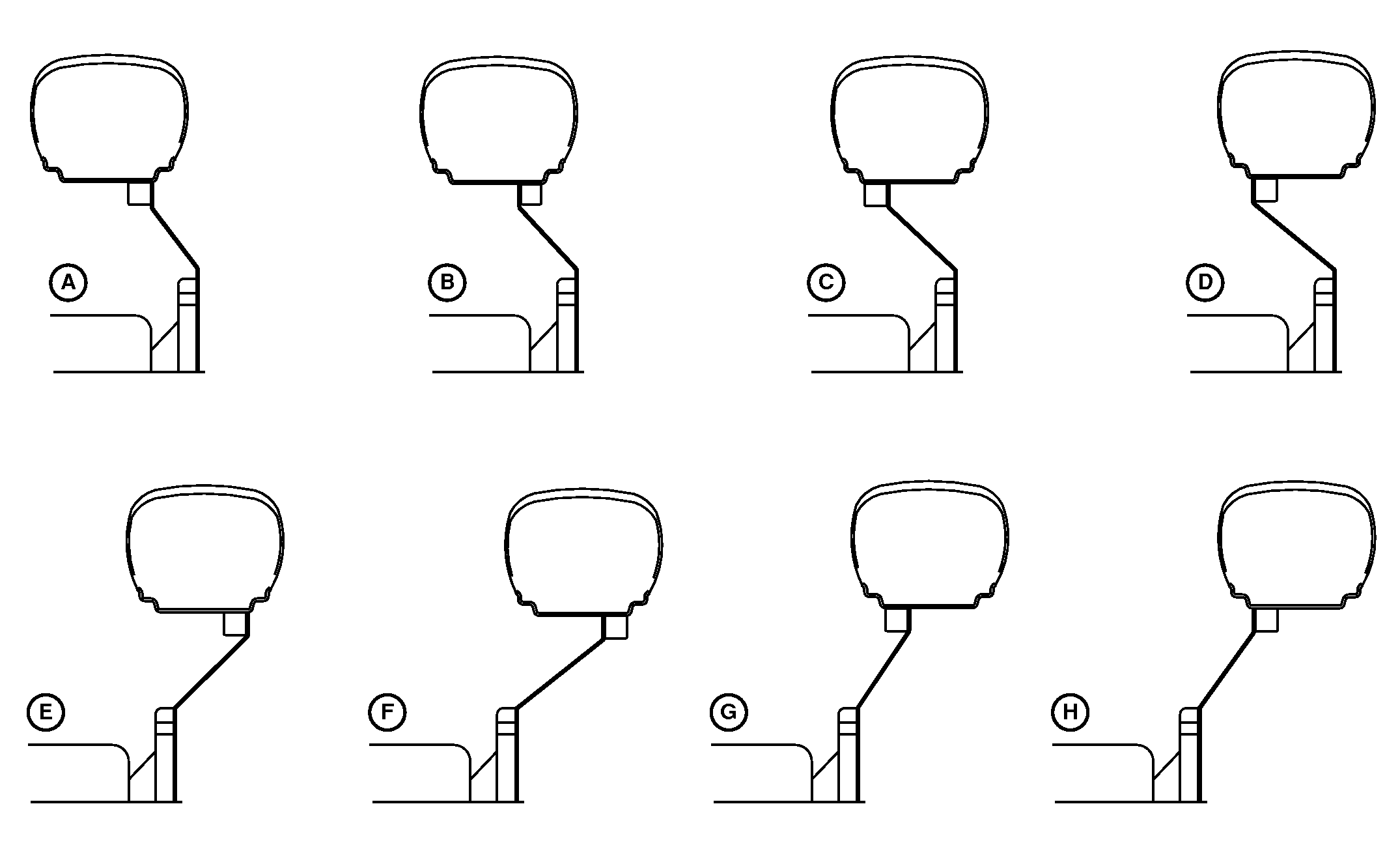

The relationship of the wheel disk and rim in obtaining the different tread settings is shown in the diagrams.

A study of these diagrams, before attempting to change tread settings, will save unnecessary labor.

IMPORTANT: After setting wheel spacing, tighten rear wheel rim-to-disk bolts and rear wheel disk-to-hub bolts to specification. Drive tractor 100 m (109 yd) and tighten again.

Item	Measurement	Specification
Rear Wheel Rim-to-Disk	Torque	245 N˙m (180 lb-ft)
Rear Wheel Disk-to-Hub	Torque	600 N˙m (445 lb-ft)

MULTI-POSITION REAR WHEELS—TREAD WIDTH (Centerline-to-Centerline)
	Diagram
Tire	A	B	C	D	E	F	G	H
16.9-30 6PR R1	INT1	INT1	INT1	INT1	1515 mm (59.6 in.)	1613 mm (63.5 in.)	1715 mm (67.5 in.)	1813 mm (71.4 in.)
18.4-30 8PR R1
19.5L-24 10PR R4	INT1	INT1	INT1	INT1	1512 mm (59.5 in.)	1617 mm (63.7 in.)	1715 mm (67.6 in.)	1820 mm (71.7 in. )
