Filling Fuel Tank

CAUTION:

TS202-UN-23AUG88

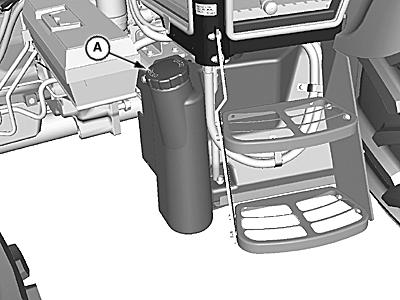

LV16364-UN-29NOV12

Non-Vented Fuel Cap; Cab

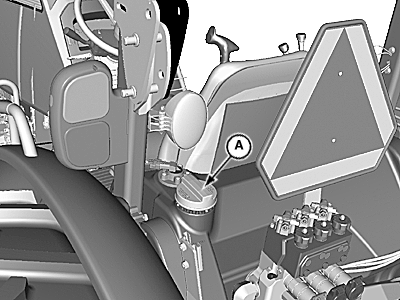

LV16365-UN-29NOV12

Vented Fuel Cap; OOS

A - Fuel Cap

Always stop engine before refueling machine. Fill fuel tank outdoors.

Prevent fires by keeping machine clean of accumulated trash, grease, and debris. Always clean up spilled fuel.

Fill fuel tank at end of each day of operation to prevent condensation in tank as moist air cools.

Item	Measurement	Specification
Cab	Capacity	114 L (30 gal.)

Item	Measurement	Specification
Open Operator’s Station	Capacity	99.2 L (26.2 gal.)

IMPORTANT: The fuel tank for the Open Operator Station Tractor uses a vented filler cap. If a new filler cap is required, always replace it with a vented cap.

NOTE: Add John Deere Fuel Flow Improver, or equivalent to fuel or bulk storage tank to reduce fuel gelling and control wax separation during cold weather.
