Exhaust Filter Cleaning

IMPORTANT: Refer to the “Operate Engine” section of the OM for exhaust filter cleaning directions.

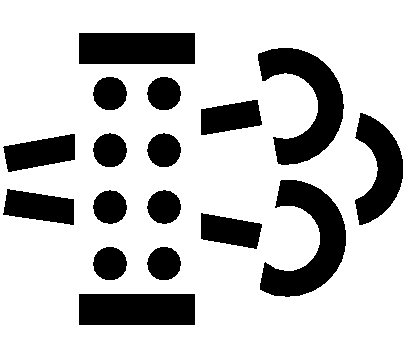

H94828-UN-13OCT09

Exhaust Filter Cleaning is Needed

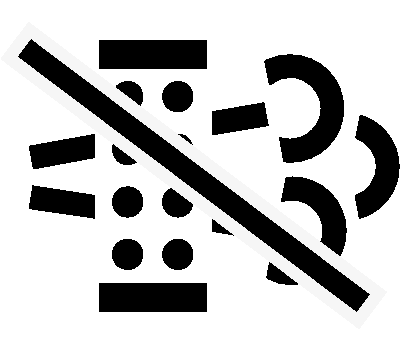

LV14784-UN-16SEP11

Exhaust Filter Cleaning is Disabled

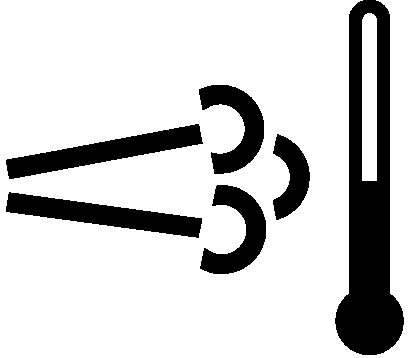

H94829-UN-13OCT09

Emission System Temperature is High or Exhaust Filter Cleaning is Underway

The exhaust filter will require maintenance periodically. Some of the maintenance will be transparent to the operator. During continuous heavy loads and other conditions, the engine may create enough heat to naturally remove accumulated soot in the exhaust filter. When the exhaust filter has accumulated higher levels of soot, the display panel may request (depending on predefined user settings) an exhaust filter cleaning. During this request, the equipment is required to be located or moved to a suitable location with adequate ventilation.

To the right are symbols which may be seen on the operator interface.

IMPORTANT: The area above and surrounding the engine during a manual exhaust filter cleaning should be free of any flammable objects as temperatures can reach as high as 550 °C (1022 °F).
