Fuse and Relay Size and Function

Cab

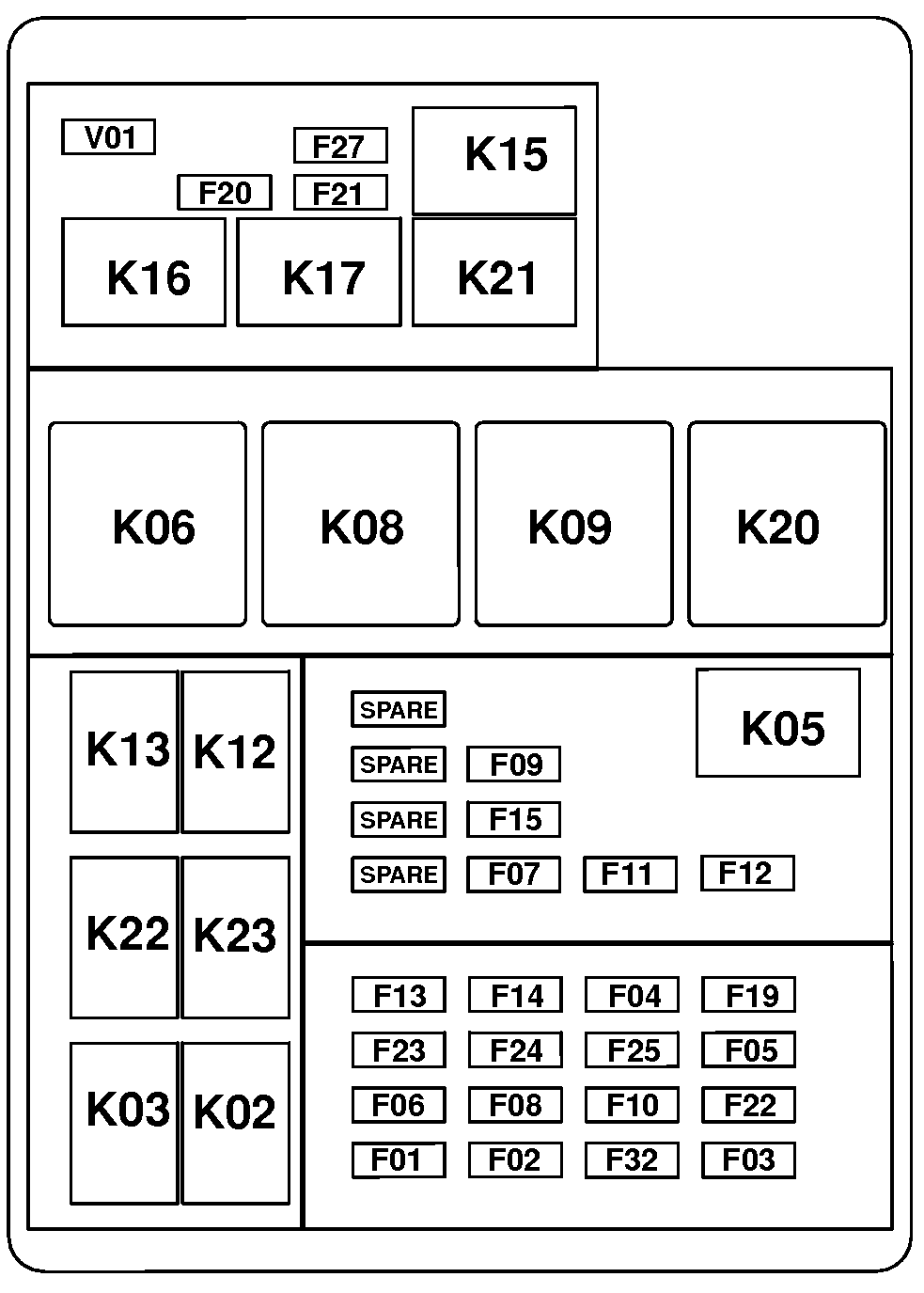

LV16368-UN-30NOV12

Load Center—Cab

F01 - 20-Amp: Ignition Switch Fuse

F02 - 30-Amp: Warning Lights and Turn Lights Fuse

F03 - 10-Amp: Dome Light and Radio Fuse

F04 - 20-Amp: Light Switch Fuse

F05 - 15-Amp: Low Beam Headlights and Loader Lights Fuse

F06 - 30-Amp: Junction Block, CNVC Outlet, and Cigar Lighter Fuse

F07 - 10-Amp: Turn Signal Fuse

F08 - 10-Amp: Instrument Cluster Fuse

F09 - 15-Amp: Brake Switch Fuse

F10 - 30-Amp: Trailer Auxiliary Power Fuse

F11 - 30-Amp: Junction Block, CNVC Outlet, Mid-Mount SCV, and Air Seat Fuse

F12 - 10-Amp: Radio Fuse

F13 - 30-Amp: Rear Work Lights Fuse

F14 - 30-Amp: Front Work Lights and Beacon Light Fuse

F15 - 15-Amp: Tail Lights Fuse

F19 - 10 Amp; Electrohydraulic Control Unit Fuse

F20 - 10-Amp: Electrohydraulic System/Sensor Excitation Fuse

F21 - 10-Amp: EH Control Unit Fuse

F22 - 10-Amp: Horn Fuse

F23 - 30-Amp: HVAC and Right Blower Fuse

F24 - 20-Amp: Front Wiper Fuse

F25 - 20-Amp: Left Blower

F27 - 5 Amp; Backup Alarm Fuse

F32 - 30 Amp; Engine Control Unit Fuse

K02 - Left Turn Relay

K03 - Right Turn Relay

K04 - Flash Logic Relay

K05 - Turn/Warn Relay

K06 - Trailer Power Relay

K08 - Rear Work Light Relay

K09 - Front Work Lights Relay

K12 - Left Flasher Relay

K13 - Right Flasher Relay

K15 - ELX Power Relay

K16 - Neutral Relay

K17 - Transmission Enable Relay

K20 - HVAC Relay

K21 - Wiper System Relay

K22 - Left Blower Relay

K23 - Right Blower Relay

V01 - Reverse Polarity Protection Diode

Center Console Relays

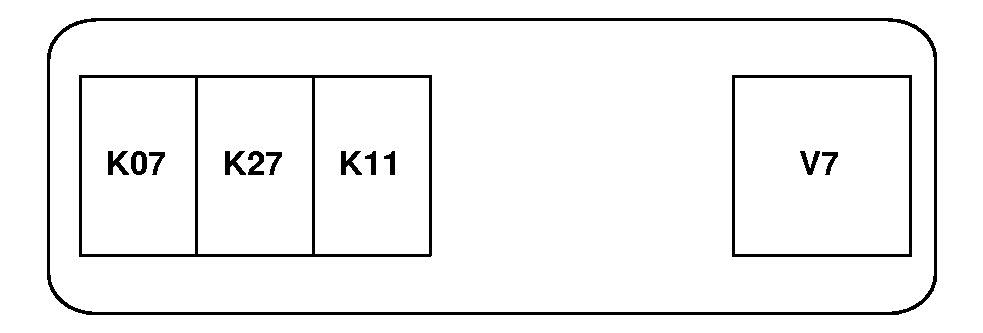

LV16369-UN-30NOV12

Center Console Relays

K07 - Accessory Relay

K11 - Neutral Relay

K27 - Head Light Relay

V7 - Diode Block

Open Operator Station

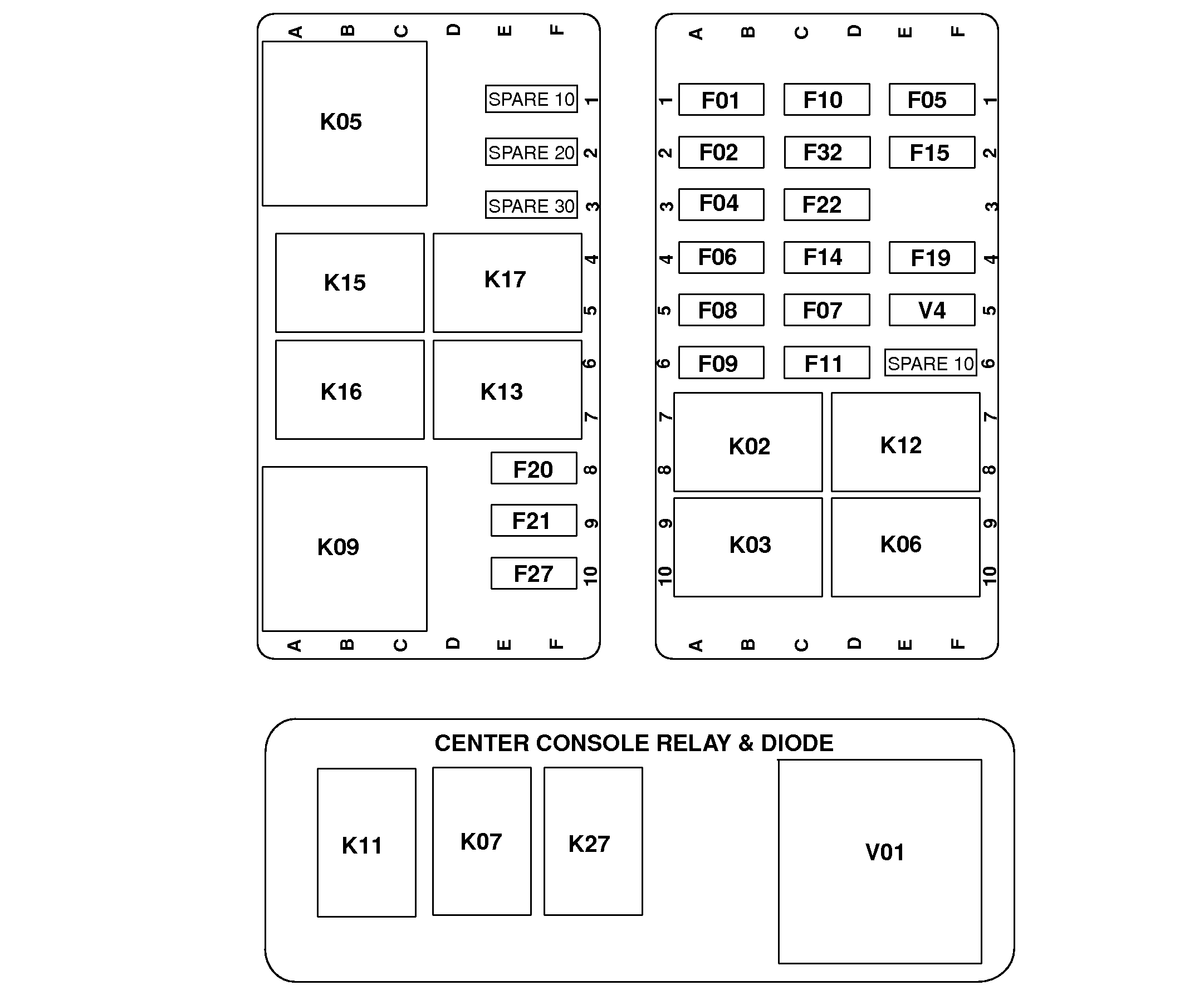

LV16370-UN-30NOV12

Load Center—OOS

F1 - 30 Amp; Ignition Switch Fuse

F2 - 30 Amp; Warning Lights and Turn Lights Fuse

F4 - 20 Amp; Light Switch Fuse

F5 - 15 Amp; High/Low Beam Headlights and Loader Lights Fuse

F6 - 30 Amp; Battery Power Fuse

F7 - 10 Amp; Turn Signal FuseHorn Fuse

F8 - 10 Amp; Instrument Cluster Fuse

F9 - 15 Amp; Brake Switch Fuse

F10 - 20 Amp; Trailer Auxiliary Power Fuse

F11 - 30 Amp; Junction Block Fuse

F14 - 30 Amp; Front Work Lights and Beacon Light Fuse

F15 - 15 Amp; Tail Lights Fuse

F19 - 10 Amp; Electrohydraulic Control Unit Fuse

F20 - 10 Amp; Electrohydraulic System/Sensor Excitation Fuse

F21 - 10 Amp; Electrohydraulic System Fuse

F22 - 10 Amp; Horn Fuse

F32 - 30 Amp; Engine Control Unit Fuse

K2 - Left Turn Relay

K3 - Right Turn Relay

K5 - Turn/Warn Relay

K6 - Trailer Power Relay

K7 - Accessory Relay

K9 - Work Light Relay

K11 - Neutral Relay

K12 - Left Flasher Relay

K13 - Right Flasher Relay

K15 - ELX Power Relay

K16 - Not Neutral Relay

K17 - Transmission Enable Relay

K27 - Head Light Relay

V01 - Diode Block

V04 - Diode
