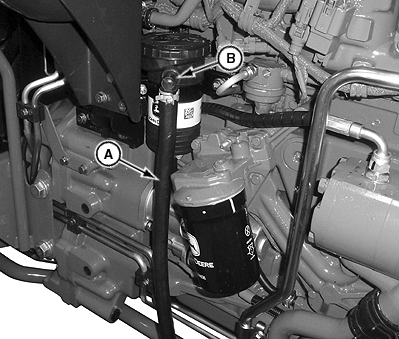

Clean Open Crankcase Vent (OCV) Tube

LV16464-UN-04JAN13

Right Side

A - Open Crankcase Vent (OCV) Tube

B - OCV Filter Housing

CAUTION: Reduce compressed air to less than 210 kPa (2 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips, and wear personal protection equipment including eye protection.

Remove open crankcase vent tube (A) from OCV filter housing. Wash in solvent or blow clean with compressed air. Install OCV tube to OCV filter housing. Be sure that vent tube is not kinked or pinched.
