Clean Fuel Tank Vent Filter (Cab Only)

NOTE: Fuel tank vent filter is only supplied with Cab Tractors. Open Operator Station (OOS) Tractors are equipped with a vented fuel cap eliminating the need for a fuel tank vent.

CAUTION: Reduce compressed air to less than 210 kPa (2 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips, and wear personal protection equipment including eye protection.

LV14431-UN-19AUG11

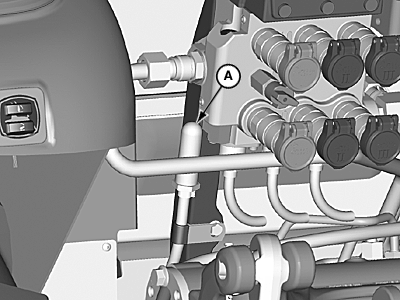

A - Fuel Tank Vent Filter

Blow dry with compressed air and replace.

Replace if damaged.
