Cold Weather Starting

NOTE: Hydraulic and Steering functions may be slow until hydraulic oil warms up to operating temperature. If hydraulic functions operate slowly, warm the transmission-hydraulic system oil. (Refer to “Warm Transmission-Hydraulic System Oil” in Hydraulic System Controls and Operations section.)

CAUTION: DO NOT use starting fluid.

Tractors are equipped with glow plugs as a standard equipment starting aid.

  1. LV16348
    LV16348-UN-28NOV12

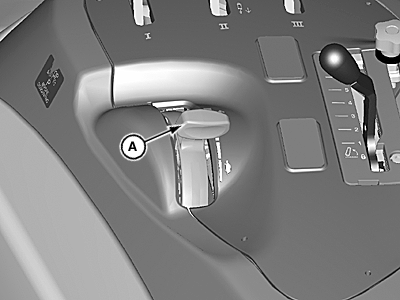

    Hand Throttle (Cab shown; OOS similar)

    LV16349
    LV16349-UN-28NOV12

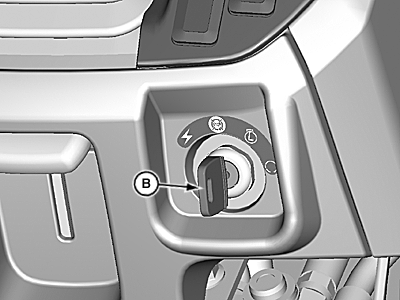

    Key Switch (Cab shown; OOS similar)

    A - Hand Throttle

    B - Key Switch

    Push hand throttle (A) forward from idle position (approximately 1/3 of full throttle).
  2. To activate cold weather starting device, turn key (B) to RUN position: NOTE: An audible beep sounds, and stops beeping when glow plugs are ready. Ambient temperature determines the duration of beeping.
  3. Depress clutch pedal and turn key to START position.
  4. Idle engine until it warms to operating temperature.

NOTE: For temperature ranging 0°C —30°C , run engine between 900 rpm and 1000 rpm.

NOTE: If hydraulic functions operate slowly, warm the transmission-hydraulic system oil. (Refer to “Warm Transmission-Hydraulic System Oil” in Hydraulic System Controls and Operations section.)

JZ81662,0000F7F-19-20121218
