Operating Windshield Wiper and Washer

LV16449-UN-19DEC12

LV14166-UN-25APR11

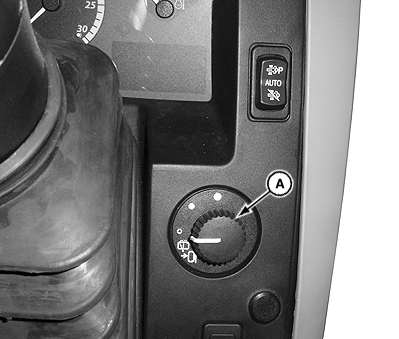

A - Windshield Wiper/Washer Switch

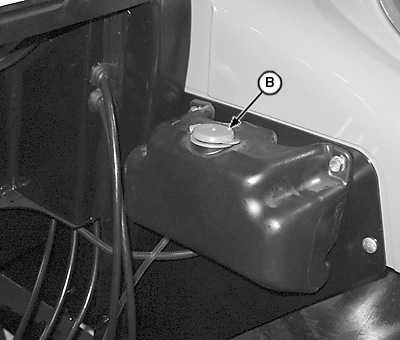

B - Washer Fluid Reservoir

Rotate wiper switch (A) to move windshield wipers to OFF, SLOW, or FAST position.

Push switch to activate windshield washer.

Fill reservoir (B) with non-freezing windshield washer fluid. Reservoir is located behind cab on inside of right rear fender.
