Tread Settings—Multi-Position MFWD Wheels

LV601-UN-22APR94

LV602-UN-22APR94

Adjust wheel tread on MFWD axle with multi-position wheels by repositioning or exchanging the rims or by reversing the wheel disks.

Wheel tread can also be adjusted by exchanging the complete wheel to the opposite side of the tractor. (This maneuver permits the change from disk-dished-in to disk-dished-out operations without disassembling the wheel). When changing MFWD wheels from one side to the other, the arrow on side wall of tire points in the direction of forward rotation. In certain applications, operating with the arrows in the opposite direction is acceptable. (See Selecting Front Tire Rolling Direction in this section.)

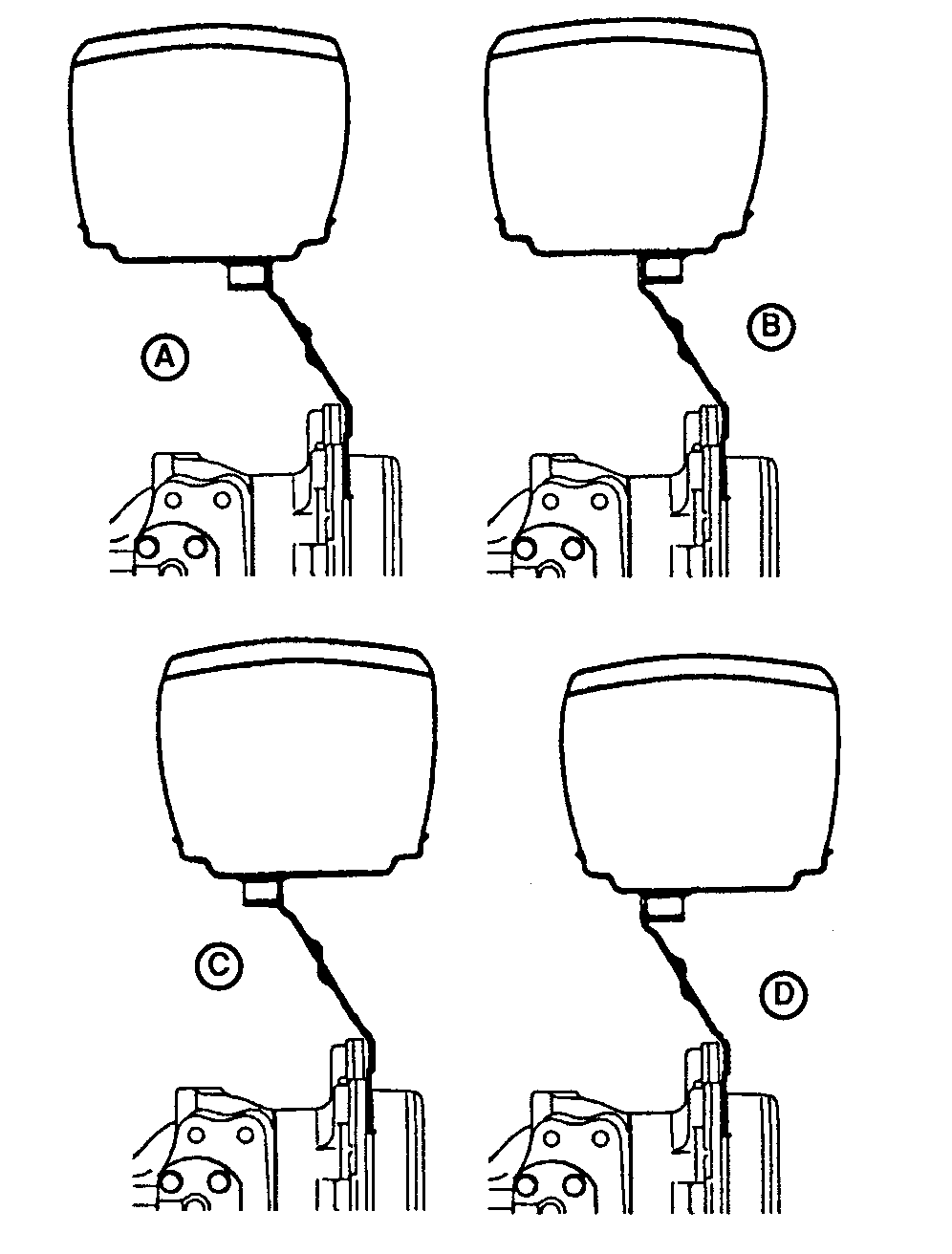

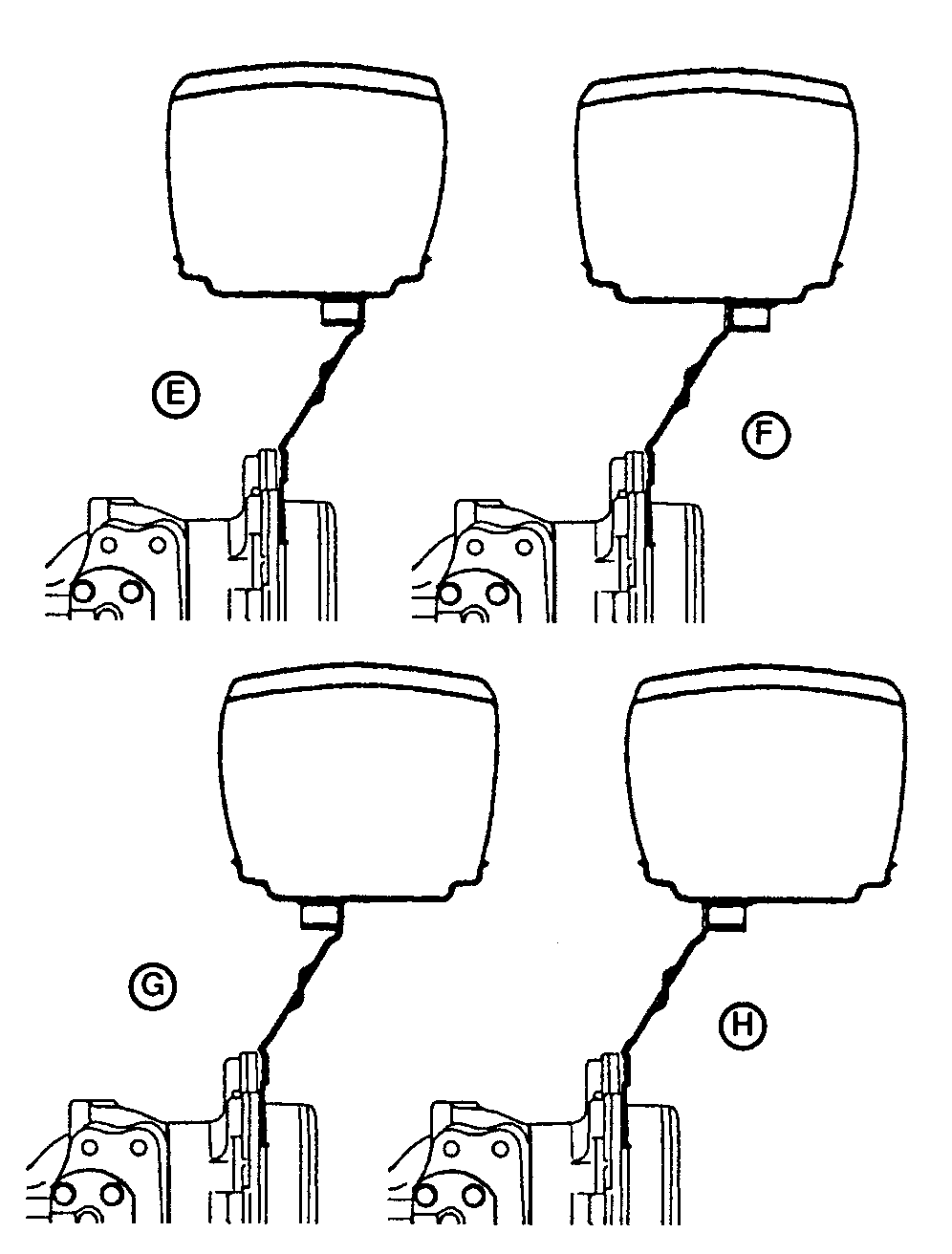

The relationship of the wheel disk and rim in obtaining the different tread settings is shown in the diagrams. To avoid unnecessary labor, study these diagrams before attempting to change tread settings.

Tread settings are measured at the middle of the tires at axle height.

IMPORTANT: After setting wheel spacing, tighten MFWD wheel rim-to-disk bolts and MFWD wheel disk-to-hub bolts to specification. Drive tractor 100 m (109 yd.) and tighten again.

Item	Measurement	Specification
MFWD Wheel Rim-to-Disk Bolts	Torque	245 N·m (180 lb.-ft.)
MFWD Wheel Disk-to-Hub Nuts	Torque	300 N·m (220 lb.-ft.)

MULTI-POSITION MFWD WHEELS—TREAD WIDTH (Centerline-to-Centerline)
	Diagram
Tire	A	B	C	D	E	F	G	H
11.2-24 6PR R1	1299 mm (51.1 in.)	1395 mm 54.9 in.)	1501 mm (59 in.)	1597 mm (62.9 in.)	1699 mm (66.9 in.)	1795 mm (70.6 in.)	1901 mm (74.8 in.)	1997 mm (78.6 in.)
12.4-24 8PR R1	1299 mm (51.1 in.)	1395 mm 54.9 in.)	1501 mm (59 in.)	1597 mm (62.9 in.)	1699 mm (66.9 in.)	1795 mm (70.6 in.)	1901 mm (74.8 in.)	1997 mm (78.6 in.)
12.5/80-18 10PR I3 TL R4	1585 mm (62.4 in.)	Not applicable	Not applicable	Not applicable	1714 mm (67.5 in.)	Not applicable	Not applicable	Not applicable
